PTFE Self Regulating Heating Cable is widely used in the heat insulation, anticoagulation and antifreeze of pipelines and storage tanks of petroleum, chemical, steel, electric power and other industrial enterprises. The heating cable is suitable for general, hazardous and corrosive areas.

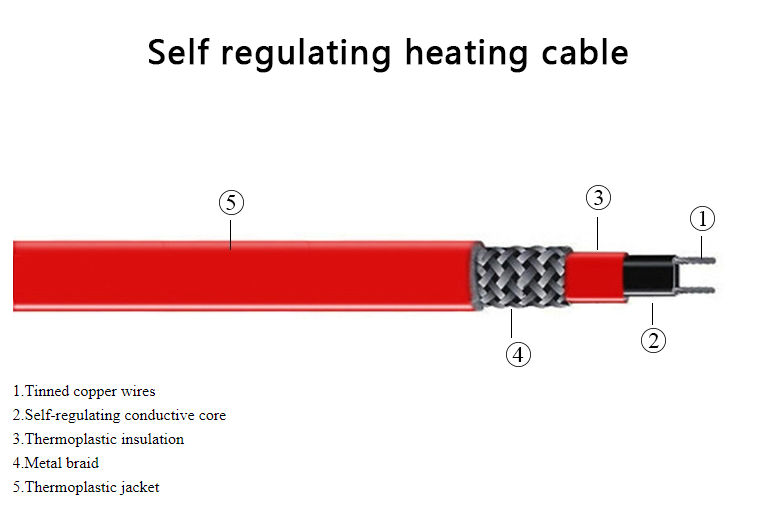

PTFE Self Regulating Heating Cable Structure
1, copper core wire: 7 × 0.32; 7 × 0.42; 7 × 0.50; 19 × 0.32;
2, conductive plastic layer: ordinary PTC; flame retardant PTC; fluorine-containing PTC;
3. Insulation layer: fluorine-containing polyolefin;
4. Shielding layer: tinned soft round copper wire (covering density 80%);
5. Sheath layer: perfluorinated material;
PTFE Self Regulating Heating Cable technical indicators
1. Temperature range: working temperature 65±5°C; exposure temperature 85°C;
2, construction temperature: -40 ° C;
3. Thermal stability: After circulating 300 times between 10 °C and 99 °C, the heat output of the cable is maintained above 90%.
4. Length of use: 100m.
PTFE Self Regulating Heating Cable advantages:
1. The temperature of the heat tracing cable pipeline is uniform and will not overheat, safe and reliable.
2, save energy
3. When the operation is intermittent, the temperature rises quickly.
4, low installation and operation costs
5, easy to install and maintain
6, easy to automate management
7, no environmental pollution
8, suitable for complex pipeline heating
9, suitable for instrument box antifreeze
10, suitable for pipeline heating away from the device
PTFE Self Regulating Heating Cable is flat and soft belt-shaped, which is convenient for bending and winding or flat on pipes, valves, pump bodies and storage tanks that need heating, heat preservation and anti-freezing. It has the characteristics of anti-freezing, heat preservation, heating and automatic temperature control. It is characterized by energy saving, environmental protection, and easy to use, good electric heating effect, easy control and high thermal efficiency utilization.
