  • flexible heavy elevator flat cable
  • flexible heavy elevator flat cable
flexible heavy elevator flat cableflexible heavy elevator flat cable

flexible heavy elevator flat cable

  • Product description: flexible heavy elevator flat cable adopts a special structure design and has a long service life, which greatly improves the operating efficiency of elevator manufacturing enterprises.
  • INQUIRY
flexible heavy elevator flat cable adopts a special structure design and has a long service life, which greatly improves the operating efficiency of elevator manufacturing enterprises. Elevator control cables can provide overall electrical control in the case of long suspension lengths, while bearing mechanical stress. Elevator cables can be used in long-distance suspension applications due to the use of steel wire to carry the cable core.
Elevator flat cable
flexible heavy elevator flat cable Features
This product has the characteristics of cold resistance, softness, wear resistance, oil resistance, etc., and is suitable for power transmission lines, control and lighting of mobile electrical appliances such as vehicles, trolleys, transmission machinery and other special requirements with cold resistance and oil resistance of AC rated voltage 0.6, 1KV and below. Communication lines.
● Product performance
Rated voltage: ≤0.75mm 300 / 500V: ≥0.75mm 450 / 750V:
Test voltage: ≤0.75mm 2500V: ≥0.75mm 3000V:
Vertical combustion test: passed GB / T18380, IEC60332;
Product standard: GB5023
Elevator flat cable

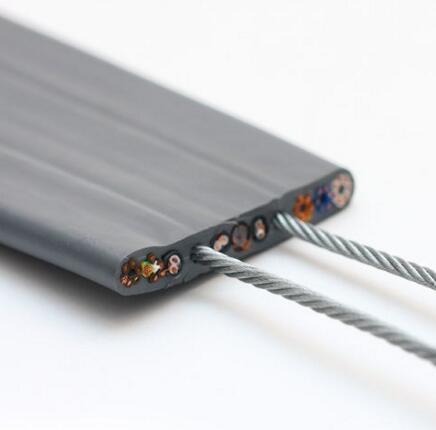

flexible heavy elevator flat cable structure
Conductor: Fine-stranded oxygen-free bare copper wire, in accordance with VDE0295CLASS 5
Insulation: PVC insulation
Core color: digital number
Core arrangement: lined or plum
Wire: two high-strength galvanized aviation steel wires (optional)
Sheath: 70 ℃ Nitrile Sheath Black (RAL9005) Grey (RAL7001)
