  • Product description: Crane equipment includes a wide range, such as gantry cranes, cranes, overhead cranes and other heavy-duty mobile machinery and equipment for vertical lifting and horizontal handling of heavy objects.
  • INQUIRY

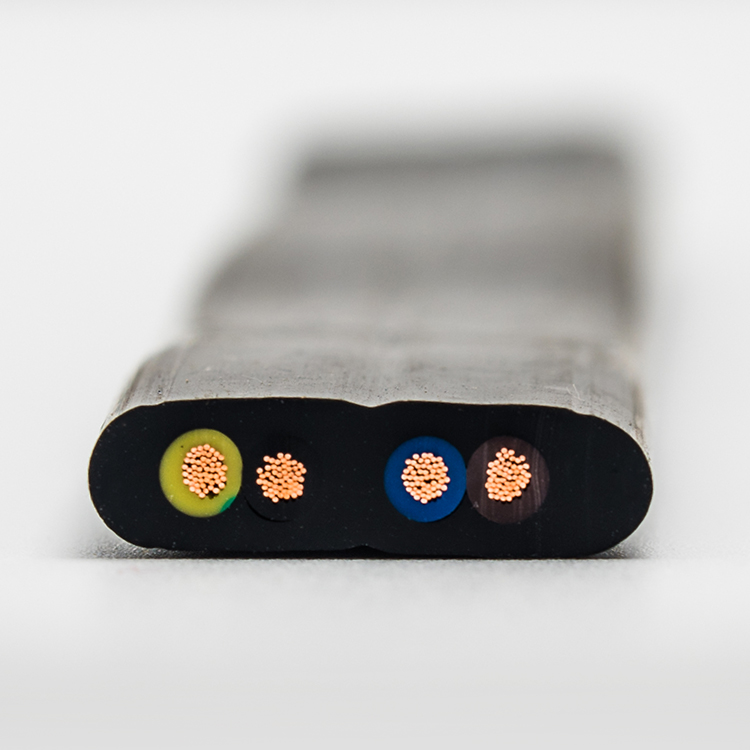

Crane equipment includes a wide range, such as gantry cranes, cranes, overhead cranes and other heavy-duty mobile machinery and equipment for vertical lifting and horizontal handling of heavy objects. The flat structure flexible cables dedicated to this type of equipment are overhead crane flat flexible cable.


flat flexible cable
Unlike conventional cables, crane flat cables have higher design requirements for flexibility. Whether used as a suspension and mobile installation, or as a coiled reel for telescopic / reel devices, good flexibility is required to ensure cable length. Time-shift installation is an important feature of crane equipment.

01. Optimal oxygen-free bare copper wire multi-stranded bundled cable conductors, in accordance with VDE 0295 / CLASS 5 conductor standards, to ensure the flexibility of the cable;

02. Optimized insulation and sheath material of elastomer (can be customized with polyurethane sheath), which effectively guarantees and improves the softness of the cable;
Crane flat cable, with crane equipment, is widely used in ports, docks, station freight yards, indoor factories, warehouses and other occasions. For different occasions, special attention needs to be paid to the cable materials to meet the installation and application in specific environments:

01. Special modified elastomer material sheath: mainly suitable for installation applications in dry or humid indoor and outdoor situations, and suitable for mobile installation and use at -15 ~ + 70 ℃;

02. Polyurethane Sheath Material Sheath: The design cable has high strength, abrasion resistance, oil resistance, water resistance, acid and alkali salt spray corrosion resistance, temperature resistance, and UV resistance, and is especially suitable for installation applications in complex and harsh conditions. , Suitable for -40 ~ + 90 ℃ (mobile installation) temperature range.

Several questions about crane flat cable:

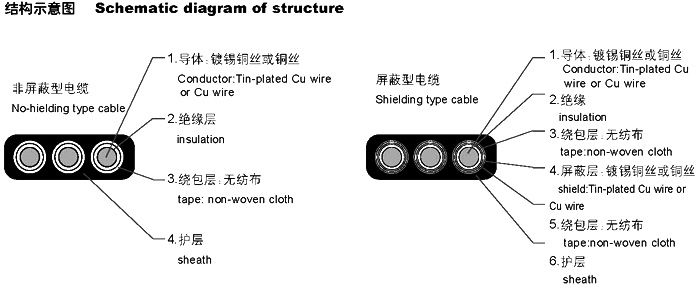

01.About cable core design:

Adopting a flat or plum-shaped structure design, optimizing the design structure of the cable, effectively controlling the finished product size, and facilitating the installation and laying of the cable;

02. About cable tensile:

The galvanized tensile steel wire rope is preferably used as the tensile bearing element of the cable and is placed on both sides of the cable;

Customizable flexible tensile reinforced conductor structure;

AnHui TianKang (Group) Shares Co., Ltd Crane flat cables are widely used as power connection cables for crane equipment. Flexible, tensile, wear-resistant, and weather-resistant are the basic properties of this type of cable. According to different industrial occasions, high temperature resistance, low temperature resistance, oil resistance, water resistance can be designed , Corrosion-resistant and other personalized design products.
