12V Self-regulating heating trace cable with braid for underfloor heating

12V Self-regulating heating trace cable with braid for underfloor heating
Product description: 12V Self-regulating heating trace cable with braid for underfloor heatingTechnical indicators: 1. Standard colors: black, orange, brown 2. Temperature range: maximum maintenance temperature 65~135℃
INQUIRY

12V Self-regulating heating trace cable with braid for underfloor heatingTechnical indicators:
1. Standard colors: black, orange, brown
2. Temperature range: maximum maintenance temperature 65~135℃ | maximum surface temperature 65~135℃±5℃ | maximum bearing temperature 135℃
3. Construction temperature: minimum: -- 30℃
4. Thermal stability: after 300 cycles back and forth from 10℃ to 149℃, the cable heat value remains above 90%
5. Bending radius: 25 at room temperature of 20℃. 4 mm; -- 35 at low temperature of 30℃. 0 mm
6, insulation resistance: cable length of 100 m, the environment temperature 75 ℃, with 2500 VDC wave table 1 minute, the insulation resistance (wire) between the block and the minimum is 3000 m Ω
Working voltage: 12V, 24V, 36V, 110V, 220V, 380V

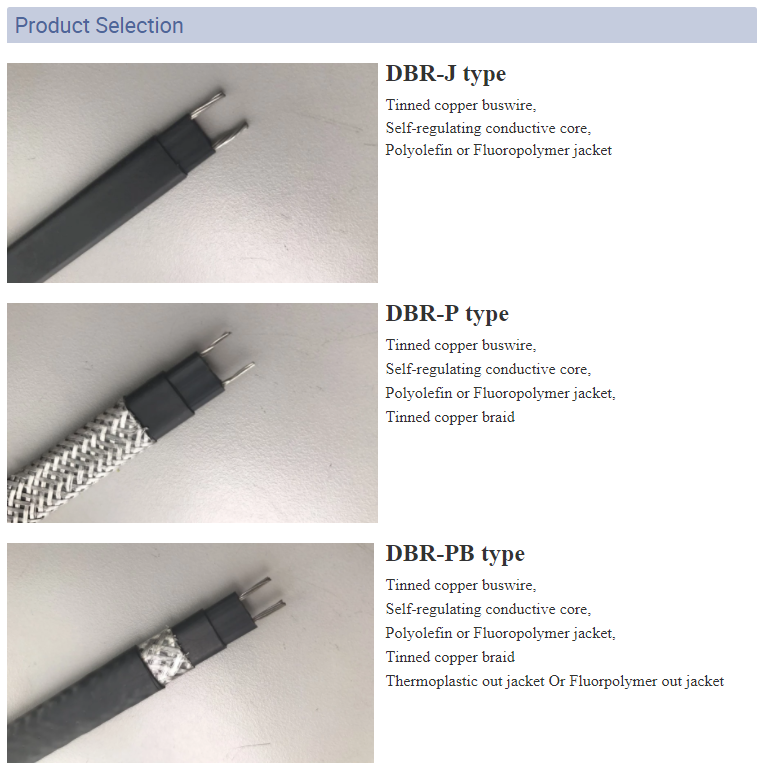

12V Self-regulating heating trace cable with braid for underfloor heating Electrical wake structure:
Tin plated soft copper wire
(2) conductive plastic layer
(3) polyolefin insulation layer (or PE flame retardant insulation layer, F46 insulation layer)
(4) tin copper wire or other metal wire shielding layer

(5) polyolefin sheath layer (or PE flame retardant sheath layer, F46 sheath layer)
