6242Y 2.5mm² 2-Core Grey flat Cable

flat Cable
Grey flat Cable
Product description: 6242Y 2.5mm² 2-Core Grey flat Cable is a flat PVC sheathed low voltage wiring cable typically used for small power and lighting applications.
INQUIRY

6242Y 2.5mm² 2-Core Grey flat Cable is a flat PVC sheathed low voltage wiring cable typically used for small power and lighting applications. Individual cores are PVC insulated with two and three core options available, both include an additional un-insulated circuit protective conductor.6241YH 1.5MM flat cable

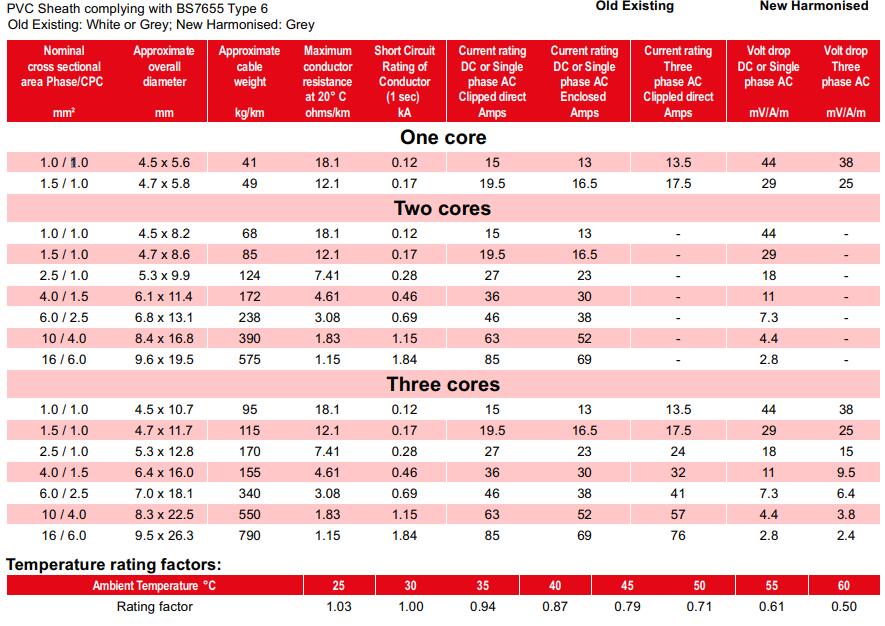

6242Y 2.5mm² 2-Core Grey flat Cable Specifications:

Conductor: Plain copper, solid, class 1 (cross-section ≤2.5mm2)
Plain copper, stranded wire, class 2 (cross-section ≥4mm2)
Insulation: PVC compound, CPC (circuit protective conductor) conductor insulated
Sheath: PVC compound, flat shape
Colour: Grey
Functional characteristics:
Rated voltage Uo/U: 300/500 V
Operating Temperature: -10°C to 70°C (without mechanical shocks)
Max. Short circuit temperature : 160°C
6242Y 2.5mm² 2-Core Grey flat Cable Installation conditions
Min. Installation Temperature: 5°C
Recommended min. Bending Radius: 4 times the cable diameter for the single pole type and 6 times the cable diameter for the smaller dimension for the flat type Recommended max. Tensile Stress: 50 N/mm² of the cross-section of the copper
6242Y 2.5mm² 2-Core Grey flat Cable Use and Installation Method

Suitable for dry and humid environments, both domestic and industrial. For static applications on flat surfaces, on brickwork,under plaster, in ducts or pipes. Not suitable for underground laying.
