Product description: Diesel Locomotive Cable is particularly suited to power the traction motors of diesel-electric locomotives. It is also recommended as a portable cable for drilling platforms, onshore or offshore, rail

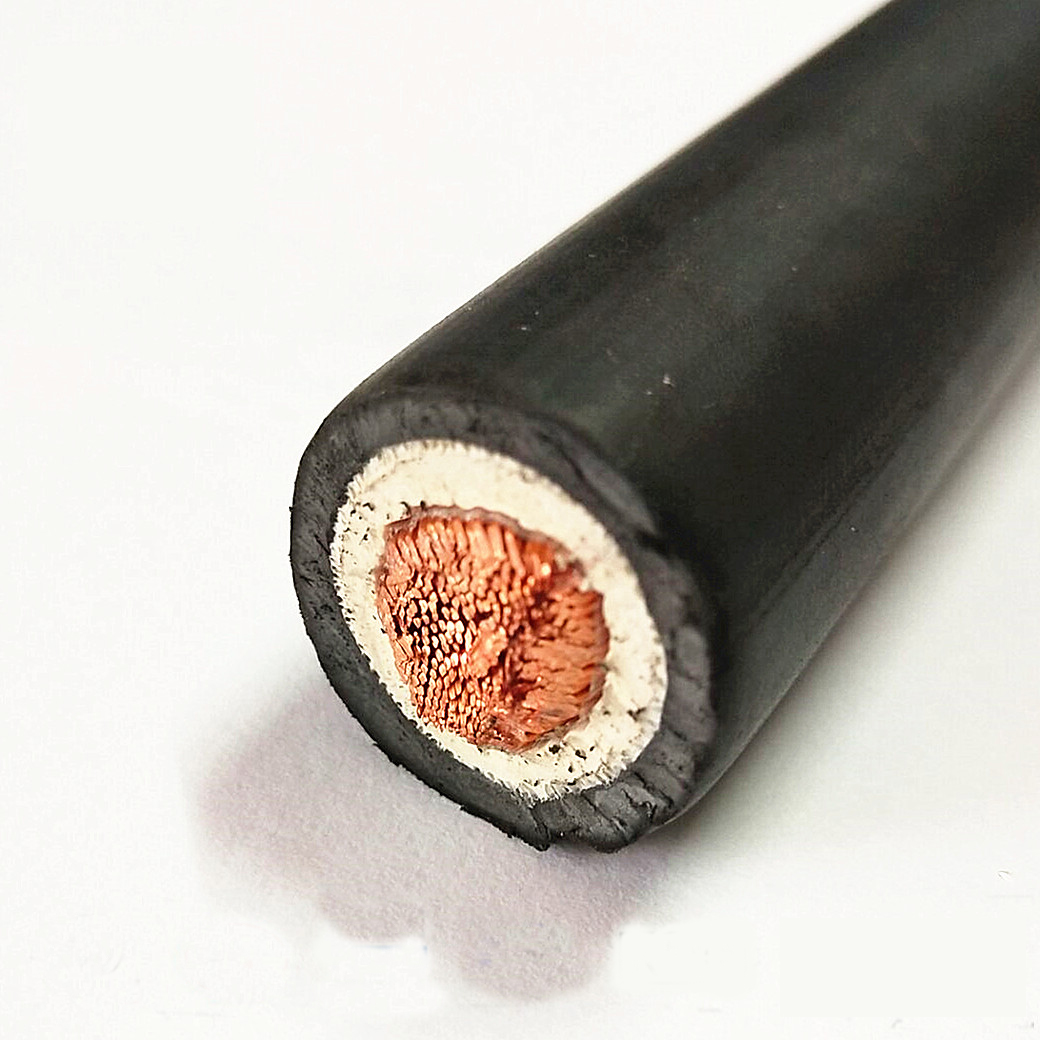

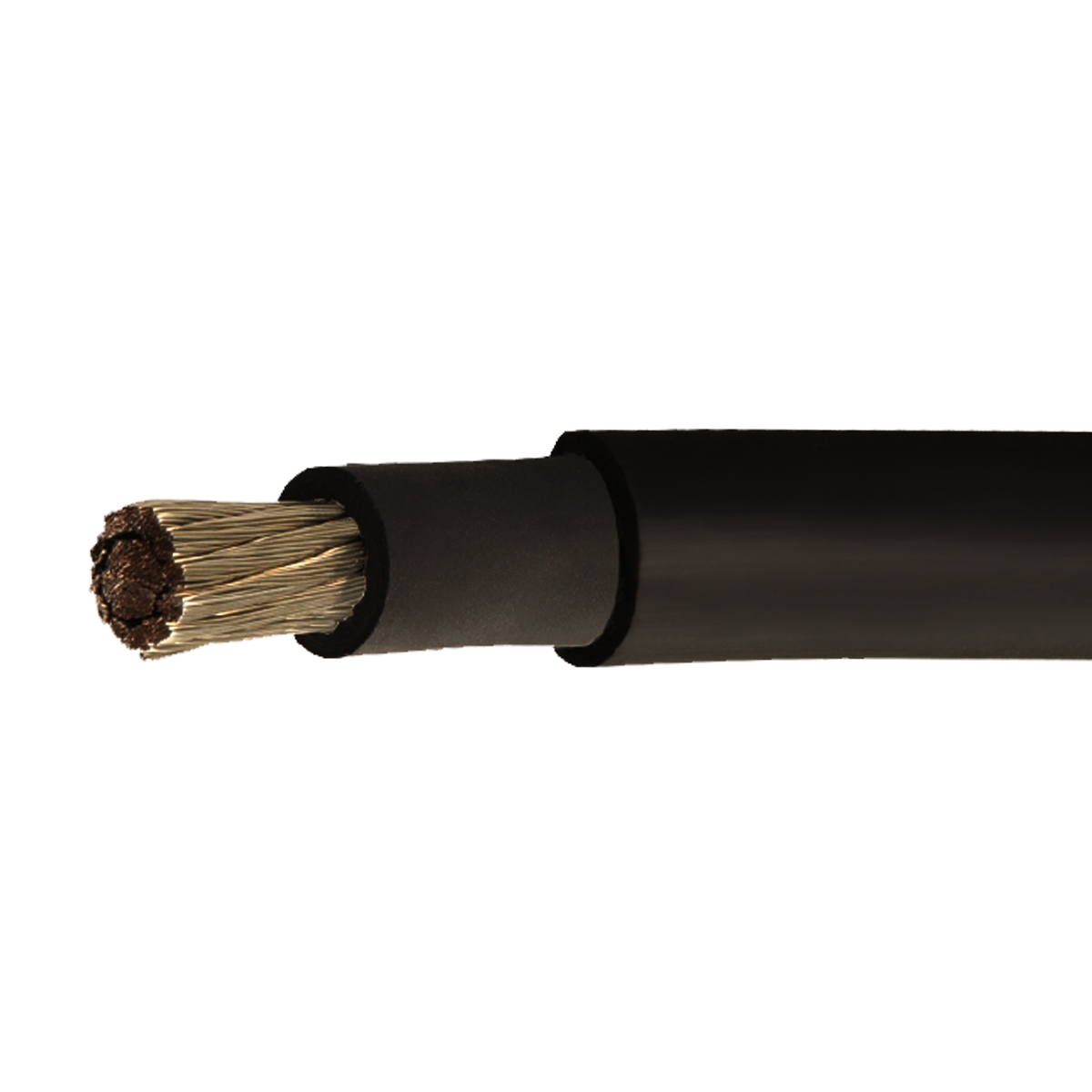

Diesel Locomotive Cable is particularly suited to power the traction motors of diesel-electric locomotives. It is also recommended as a portable cable for drilling platforms, onshore or offshore, rail and bus lines, electric earthmoving equipment, shipyard applications, arc welder power lines, power and control jumper cables, telecommunications power supplies. In wet or dry places, Diesel Locomotive Cablethe maximum continuous conductor temperature for normal operation is 90°C. DLO is resistant to oil, acid, alkali, heat, flame, and abrasion. The cable is suitable for wet or dry areas, conduits, pipes, grooves or trays, and requires excellent electrical performance. Diesel Locomotive Cable Conductor: 10 AWG through 777.7 kcmil stranded tinned annealed bare copper per AAR 589 Jacket:
Chlorinated polyethylene (CPE), Black
Diesel Locomotive Cable Applications: DLO provides maximum performance. Tough enough to withstand daily abuse, temperature extremes and high-stress industrial environment Diesel electric locomotives For applications where flexible power leads must be installed in conduit or raceway Motor leads Diesel Locomotive Cable Features: 90°C temperature rating Excellent impact and abrasion resistance Resists oils, acids, alkalies, heat and flame
