TRVVB towline flat cable

Drag chain flat cable TRVVB

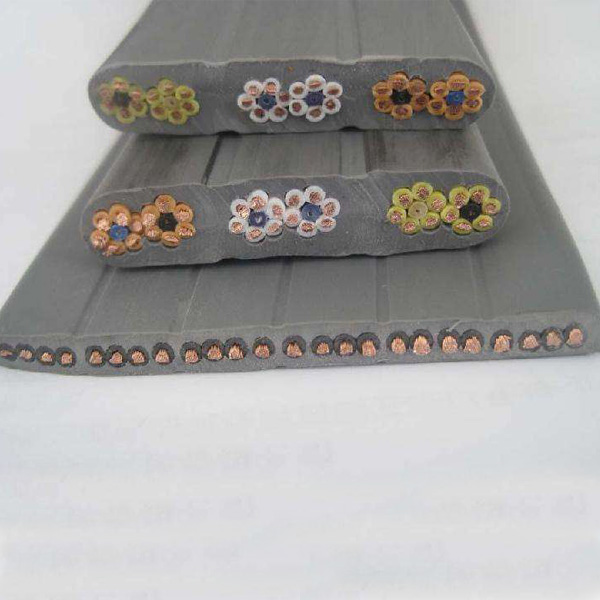

flat cable TRVVB
Product description: TRVVB towline flat cable has the characteristics of cold resistance, softness, wear resistance, oil resistance, etc. It is suitable for power transmission lines for mobile electric appliances such as
INQUIRY

TRVVB towline flat cable has the characteristics of cold resistance, softness, wear resistance, oil resistance, etc. It is suitable for power transmission lines for mobile electric appliances such as driving, trolley and transmission machinery with AC rated voltage of 0.6/1KV and below with special requirements of cold resistance and oil resistance. And control, lighting, communication lines.

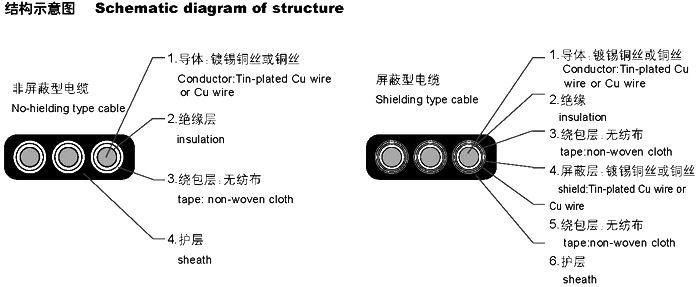

TRVVB towline flat cable structure

Wire: Multi-strand ultra-fine stranded oxygen-free copper wire, in line with CDE0295CLASS6
Insulation: special mixed PVC insulation
Color code: ≤0.5mm color, brown, black, blue, purple, pink, orange;
≥0.5mm black digital white number, more than 3 cores with blue and green grounding wire (yellow green optional)
Core structure: anti-kink layering, or grouped gap filling
Outer sheath: special modified PVC sheath
Inner sheath: modified low viscosity and strong extrusion force inner sheath, PVC material, oil resistant.

Sheath color: outer sheath: black (RAL9005) / gray (RAL7001) / orange (RAL2003)

towline flat cable

TRVVB towline flat cable Characteristics and compliance
Movement characteristics: ▲ laying stroke 0m, acceleration 60M/S2, moving speed 7m/S
▲ bending life: 80 times / minute, > 6 million times
Features: ▲ anti-shallow, oil-proof, UV-resistant, weather resistant
▲ cold, wear resistance, can withstand heavy mechanical external forces
TRVVB towline flat cable Technical Parameters
Rated voltage: section <0.5mm2: 300/300V
Section ≥0.5mm2: 300/500V
Test voltage: 2000V
Minimum bending radius
Fixed laying: 5XD
Mobile installation: When the stroke is <10 meters, the bending radius is 8XD
When the stroke is ≥10 meters, the bending radius is 10XD
TRVVB towline flat cable Operating temperature
Fixed laying: -40 to +90 ° C
Mobile installation: -30 to +90 ° C
