Frequency conversion cable

Frequency conversion Special shielded cable BPYJVP

Special shielded cable
Frequency conversion cable
BPYJVP CABLE
Product description: The structure of the frequency conversion cable includes three main insulated wires and three neutral insulated wires. The inner winding layer, copper tape layer, outer winding layer and outer sheath
INQUIRY

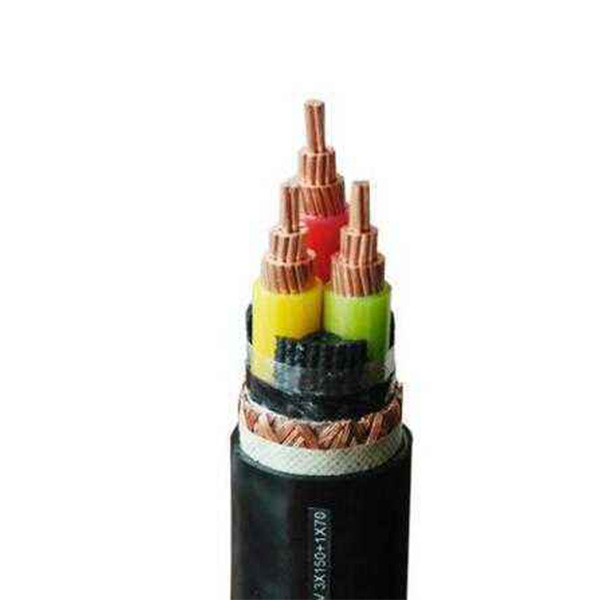

The structure of the frequency conversion cable includes three main insulated wires and three neutral insulated wires. The inner winding layer, copper tape layer, outer winding layer and outer sheath layer are sequentially arranged outside the main and neutral insulated wires to form 3+ The 3-wire core structure makes the cable have strong resistance to voltage shock, can withstand the pulse voltage of high-speed and frequent frequency conversion, and has a good protective effect on frequency conversion electrical appliances,Flex Cable.
Frequency conversion cable Conditions of Use
1. Rated voltage U0/U: 0.6/1KV
2. The long-term allowable maximum temperature of the cable conductor is 90 degrees, and the maximum temperature when short-circuited is 250 degrees.
3. The ambient temperature for installation and laying is not less than 0 degrees, and the ambient temperature for fixed laying is not less than -10 degrees.
4. The minimum allowable bending radius of the cable is not less than 15D (D- cable outer diameter, mm)
Frequency conversion cable performance
1. BPYJVP12R-TK, ZRBPYJVP12R-TK type design adopts category 5 soft-stranded copper conductor in accordance with GB/T3956-1997.
2. Cross-linked polyethylene insulation, good temperature and weather resistance.
3. Low transmission impedance and good electromagnetic compatibility.
4. Low working capacitance.
5. Good anti-interference and low radiation performance.
6. The symmetrical three-core cable structure design has better transmission performance than the four-core cable.

Frequency conversion cable Model Name

BPYJVTP2-TK Copper core XLPE insulated PVC sheathed copper wire wrapped with copper tape to shield the loop cable for the inverter.
ZRBPYJVTP2-TK copper core XLPE insulated flame-retardant PVC sheathed copper wire wound copper tape wrapped shielded inverter loop cable.
BPYJVP12-TK copper core XLPE insulated PVC sheathed copper tape wrapped copper wire braided double-shielded inverter circuit cable.
ZRBPYJVP12-TK copper core XLPE insulated flame-retardant PVC sheathed copper tape wrapped copper wire braided double-shielded inverter loop cable.
BPYJVPX12R-TK copper core XLPE insulated PVC sheathed copper tape wrapped tinned copper wire braided double-shielded inverter circuit cable.
ZRBPYJVPX12R-TK copper core XLPE insulated flame-retardant PVC sheathed copper tape wrapped tinned copper wire braided double-shielded inverter circuit cable.
