H01N2-D 35mm2 50mm2 70mm2 95mm2 120mm2 Rubber Insulated Superflex Welding Cable

Welding Cable

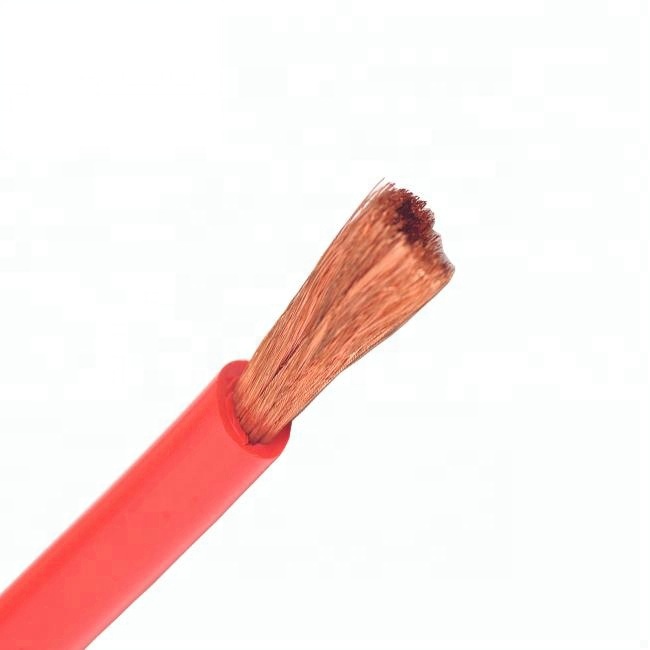

Product description: H01N2-D 35mm2 50mm2 70mm2 95mm2 120mm2 Rubber Insulated Superflex Welding Cable use characteristics: particularly soft, with good bending performance. The sheath material adopts natural rubber or neop
INQUIRY

H01N2-D 35mm2 50mm2 70mm2 95mm2 120mm2 Rubber Insulated Superflex Welding Cable use characteristics: particularly soft, with good bending performance. The sheath material adopts natural rubber or neoprene mixture, which can be applied to different occasions. Neoprene compound jacket has heat resistance, oil resistance and non-flammability. The maximum operating temperature of the cable is 85 ° C.
Requirements for electric welding machine wires cables:
(1) The electric welding machine cable works under the condition of low voltage (maximum voltage of 600V) and large current, and it requires certain resistance.
(2) The long-term allowable working temperature of the handlebar cable should not exceed 85 ° C.
(3) The lead wires of the motor are frequently moved, twisted and cast, requiring softness and good bending performance.
(4) It is easy to be scratched and rubbed by sharp iron and steel components during casting, so it is required that the cable has good mechanical properties such as tear resistance and abrasion resistance.
(5) The use of environmental conditions is complex, such as sunlight, boiling water, contact with muddy water, engine oil, acid and alkali liquids, etc., which require certain weather resistance, oil resistance, and solvent resistance.
(6) Hot welding parts are sometimes encountered, which requires good heat distortion resistance.

(7) Frequent movement requires small outer diameter and light weight. Because the electrical performance of this kind of cable is not high, and the use of environmental conditions is complex, it is unsuitable to meet various complex environmental factors in the structure. When using, pay attention to improve the use conditions to prevent external damage.

H01N2-D 35mm2 50mm2 70mm2 95mm2 120mm2 Rubber Insulated Superflex Welding Cable Technical data & size .

Nominal Section-Area of Conductor(mm2)	Structure of Conductor	Nominal Thik-ness of Sheath (mm)	Overall Diameter		Max. Conductor Resistance at 20º C (Ω /km)	Approx. Weight (kg/km)
Nominal Section-Area of Conductor(mm2)	Core no. /Dia. (no. /mm)	Nominal Thik-ness of Sheath (mm)	Min.	Max.	Max. Conductor Resistance at 20º C (Ω /km)	YH	YHF
10	322/0.20	1.8	7.5	9.7	1.91	146	153.51
16	513/0.20	2.0	9.2	11.5	1.16	218.9	230.44
25	798/0.20	2.0	10.5	13.0	0.758	316.6	331.15
35	1121/0.20	2.0	11.5	14.5	0.536	426	439.87
50	1596/0.20	2.2	13.5	17.0	0.379	592.47	610.55
70	2214/0.20	2.4	15.0	19.5	0.268	790	817.52
95	2997/0.20	2.6	17.0	22.0	0.198	1066.17	1102.97
120	1702/0.30	2.8	19.0	24.0	0.161	1348.25	1392.55
150	2135/0.30	3.0	21.0	27.0	0.128	1648.5	1698.72
185	1443/0.40	3.2	22.0	29.0	0.106	1983.8	2020.74
