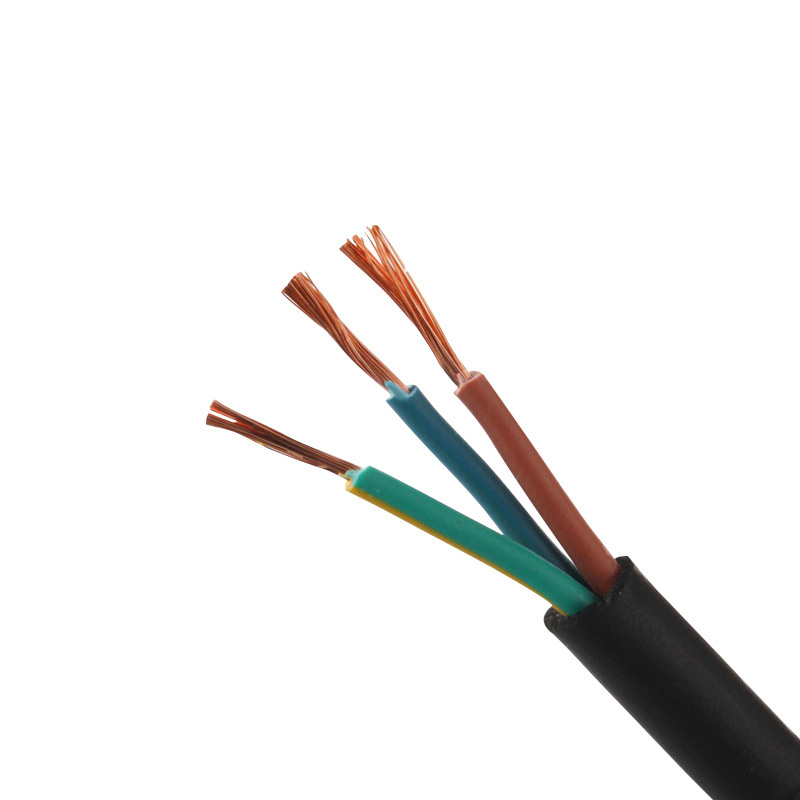

Product description: 450/750V H07RN-F high flexibility rubber cable is highly flexible and resistant to harsh weather, grease, mechanical shock and temperature stress. flexibility rubber cable applications include proces

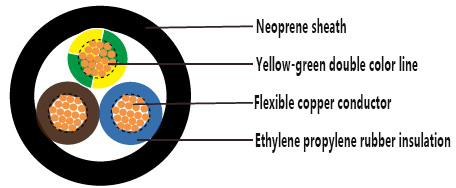

450/750V H07RN-F high flexibility rubber cable is highly flexible and resistant to harsh weather, grease, mechanical shock and temperature stress. flexibility rubber cableapplications include processing equipment, mobile power, construction sites, stage and audiovisual equipment, port areas and dams. It can also be fixed in the installation of lime, temporary buildings and residential military camps, drainage and sewage treatment, cold environments and harsh industrial environments. 450/750V H07RN-F high flexibility rubber cable structure - Multi-strand soft bare copper conductor - Follow VDE-0295 Cl 5, IEC 60228 Cl-5 - Ethylene Propylene Rubber (EPR) Type EI4 EI4 follows VDE-0282 Part 1 - Color coding follows VDE-0293-308 and HD186 - Yellow-green grounding wire (three cores and three cores or more) - Neoprene sheath (Polychloroprene, EM2) 450/750V H07RN-F high flexibility rubber cable Technical characteristics - Working voltage: 450/750V - Test voltage: 2500V - Dynamic bending radius: 6xΦ - Fixed installation bending radius: 4.0xΦ - Operating temperature when applied: -25 °C to 60 °C - Fixed installation temperature: -40 °C to 60 °C - Temperature reachable during short circuit: 200 °C - Flame retardant: IEC60332.1 -Insulation resistance: 20 MΩ x km
