Coaxial Cable

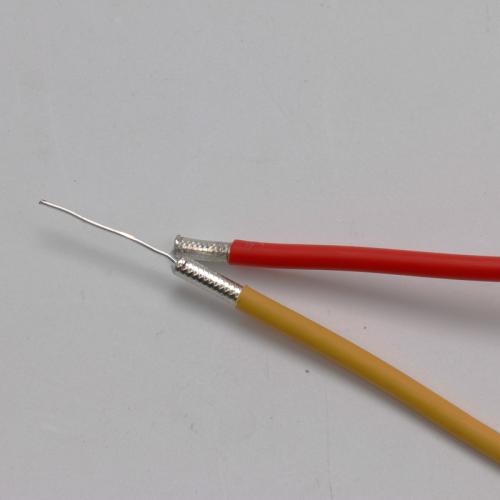

High-temperature Teflon insulated and sheathed silver-plated copper wire coaxial cable SFF

High temperature resistant Teflon insulated and sheathed coaxial cable SFF
Product description: High-temperature Teflon insulated and sheathed silver-plated copper wire coaxial cable SFF is light in weight, soft in flexibility, resistant to moisture and corrosion, and has excellent electrical an
INQUIRY

High-temperature Teflon insulated and sheathed silver-plated copper wire coaxial cable SFF is light in weight, soft in flexibility, resistant to moisture and corrosion, and has excellent electrical and mechanical properties.this coaxial cable has good shielding, low attenuation and small standing wave ratio. It is widely used in the transmission of radio frequency signals in electronic devices such as communication and electronic countermeasures.
High-temperature Teflon insulated and sheathed silver-plated copper wire coaxial cable SFF Features:
1. Working temperature: -55 ° C ~ 200 ° C
2. Conductor: silver plated copper conductor
3. Insulation: PTFE (F4)
4, shielding layer: braided single wire is silver-plated copper wire
5, protective cover: polyperfluoroethylene propylene (F46)
6, color: insulation: white sheath: transparent or other colors

High-temperature Teflon insulated and sheathed silver-plated copper wire coaxial cable SFF structure size

Model	Inner conductor (mm)			Insulation External Diameter (mm)	External conductor (mm)		Jacket (mm)
	Root/Diameter	external diameter			type	Outside diameter less than	Minimum thickness	external diameter
SFF-50-1	7/0.10		0.30	0.87±0.07	Braiding of Single Silver-plated Copper Wire	1.45	0.15	1.80±0.15
SFF-50-1.5-1	7/0.18		0.54	1.50±0.10	Braiding of Single Silver-plated Copper Wire	2.10	0.18	2.55±0.15
SFF-50-2-1	1/0.73		0.73	2.20±0.10	Braiding of Single Silver-plated Copper Wire	2.80	0.18	3.30±0.20
SFF-50-3-1	1/0.93		0.93	3.0±0.12	Braiding of Single Silver-plated Copper Wire	3.90	0.23	4.50±0.25
SFF-75-1	1/0.17		0.17	0.87±0.07	Braiding of Single Silver-plated Copper Wire	1.45	0.15	1.80±0.15
SFF-75-1.5-1	7/0.10		0.30	1.50±0.10	Braiding of Single Silver-plated Copper Wire	2.10	0.18	2.55±0.15
SFF-75-3-1	1/0.55		0.55	3.0±0.12	Braiding of Single Silver-plated Copper Wire	3.90	0.23	4.50±0.25
