Thermocouple compensation cable

  • Explosion-proof anti-signal interference sub-shield total shield K-type compensation cable IA-KX-GSVPVP
Explosion-proof anti-signal interference sub-shield total shield K-type compensation cable IA-KX-GSVPVP

Explosion-proof anti-signal interference sub-shield total shield K-type compensation cable IA-KX-GSVPVP

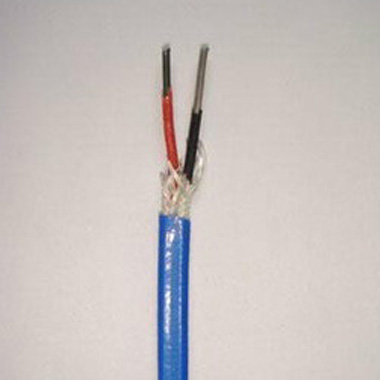

  • K-type compensation cable IA-KX-GSVPVP
  • Product description: Explosion-proof anti-signal interference sub-shield total shield K-type compensation cable IA-KX-GSVPVP is a combination of multiple pairs of intrinsically safe explosion-proof temperature measurement
  • INQUIRY

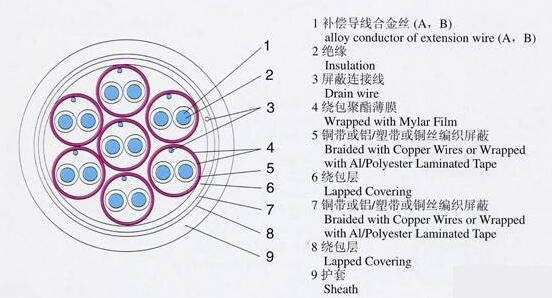

Explosion-proof anti-signal interference sub-shield total shield K-type compensation cable IA-KX-GSVPVP is a combination of multiple pairs of intrinsically safe explosion-proof temperature measurement system with compensation wires. In addition to the performance of other compensation cables, K-type compensation cable also has explosion-proof safety performance. Applicable to the environment with explosion hazard and high requirements for explosion-proof safety performance. The extended end of the explosion-proof thermocouple is connected with the explosion-proof temperature measuring instrument to form an intrinsically safe explosion-proof temperature measuring system.

Thermocouple compensation cable

Explosion-proof anti-signal interference sub-shield total shield K-type compensation cable IA-KX-GSVPVP implementation standards
  This product implements GB/4989-94 equivalent to adopt IEC584-3 standard
     Flame retardant properties meet the requirements of GB12666-5 (IEC332-3)
Third, the compensation cable use characteristics
   1, the use temperature: heat resistance level: 180 ° C ordinary level: 70 ° C and 105 ° C;
   2. Compensation cable minimum ambient temperature:
     Fluoroplastic insulated flame retardant PVC sheath:
     Fixed laying: -40 ° C, non-fixed laying -15 ° C;
     Fluoroplastic insulated silicon rubber sheath:
     Fixed laying: -60 ° C, non-fixed laying -20 ° C;
   3. Compensation cable installation temperature: flame retardant PVC sheath is not lower than 0 °C, silicone rubber sheath is not lower than -25 °C;

   4. Allowable bending radius: The copper tape shield winding cable is not less than 12 times the outer diameter of the compensation cable, and the remaining cables are not less than 6 times the outer diameter of the thermocouple compensation cable.

   detailed description of the thermocouple compensation wire can be found here.Thermocouple compensation wire introduction
