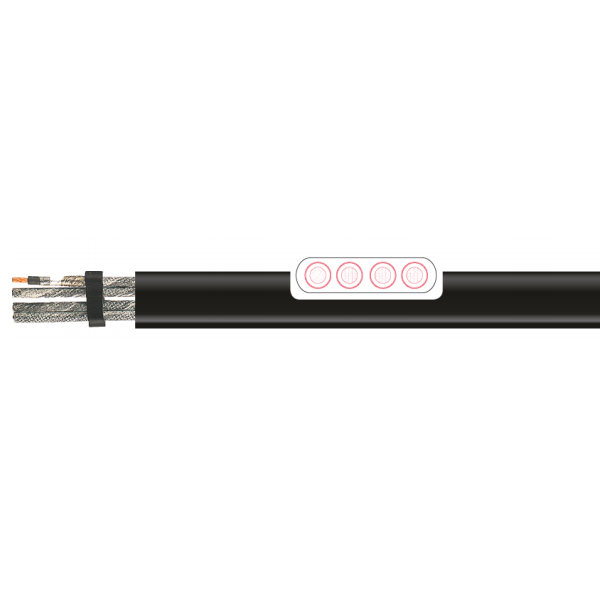

M(StD)HOU screened Flat cable

M(StD)HOU screened Flat cable
screened Flat cable
Product description: M(StD)HOU screened Flat cable for trolley systems, transfer lines, machinetools, on hoisting devices, lift, crane and container bridges.the neoprene material provides improved flexibility when compere
INQUIRY

M(StD)HOU screened Flat cable for trolley systems, transfer lines, machinetools, on hoisting devices, lift, crane and container bridges.the neoprene material provides improved flexibility when compered to PVC which results in longer cable life.Also in applications where cables are bended strongly in permanent moving operation in one level. Suitable for dry, humid and wet rooms and for outdoor use.AnHui TianKang(Group)Shares Co., Ltd welcome you for Inquiry.

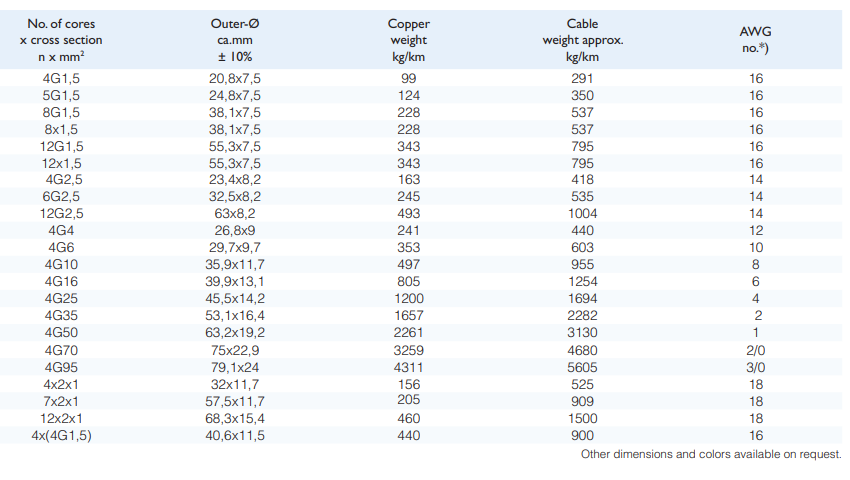

M(StD)HOU screened Flat cable Structure & Specifications

Conductor material	bare copper strand
Conductor class	acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
Core insulation	rubber compound
Core identification	acc. to DIN 0293-308 up to 5 wires coloured, from 6 wires white black numerals with or without gn/ye
Standing	cores resp. bundles parallel side by side
shield	coated foil + wrapped tinned wire
Outer sheath	Polychloropren (NEOPRENE)
Sheath colour	black
Printing	yes
Rated voltage	Uo/U 0,6/1 kV
testing voltage	2,5 kV
current carrying capacity	acc. to DIN VDE, see Technical Guideline
min. bending radius fixed	acc. to DIN VDE 0298 part 3
min. bending radius moved	acc. to DIN VDE 0298 part 3
operat. Temp. fixed min/max	-40 °C / +80 °C
operat. Temp, moved min/max	-30 °C / +80 °C
temp. at conuctor	+90 °C
burning behavior	acc. to IEC 60332-1
standart	UL-Style 4540 and acc. to DIN VDE 0250 part 809

Neoprene Flat cables are suitable for use as both power and control cables for many different types of travelling machinery,Popular applications include :- Hoists, Cranes, Trolley systems, Transfer lines,Container bridges, Machine tools, Elevators etc.They are also suitable for other applications where cables are required to be bent to a tight radius in one direction.
