Spiral Cable

  • Polyurethane sheathed spiral cable
  • Polyurethane sheathed spiral cable
  • Polyurethane sheathed spiral cable
  • Polyurethane sheathed spiral cable
Polyurethane sheathed spiral cablePolyurethane sheathed spiral cablePolyurethane sheathed spiral cablePolyurethane sheathed spiral cable

Polyurethane sheathed spiral cable

  • Spiral Cable
  • PUR spiral cable
  • Product description: Polyurethane PUR sheathed spiral cable is made of abrasion-resistant, oil-resistant and flame-retardant special modified polyurethane PUR mixture, which is resistant to chemical corrosion, acid and al
  • INQUIRY
Polyurethane PUR sheathed spiral cable is made of abrasion-resistant, oil-resistant and flame-retardant special modified polyurethane PUR mixture, which is resistant to chemical corrosion, acid and alkali resistance, hydrolysis resistance, and ultra-high resilience. It is designed for movable occasions where the outer sheath has higher mechanical force bearing requirements while maintaining the rapid expansion and contraction of the cable.
Polyurethane PUR sheathed spiral cable characteristics:
Using soft conductor structure, good flexibility, good flexibility, high resilience (the elongation length can reach 3-5 times the original spring length), the spiral cable made of pur material is resistant to oil stains, hydrolysis, and weak acid and alkali. Anti-microbial corrosion, anti-aging, anti-ultraviolet and other excellent chemical properties, as well as various excellent physical properties such as bending resistance, abrasion resistance, good elasticity and tear resistance. The service cycle is long, and it can still maintain good stability in continuous work in multiple shifts. Pur spiral cables are currently the most widely used.

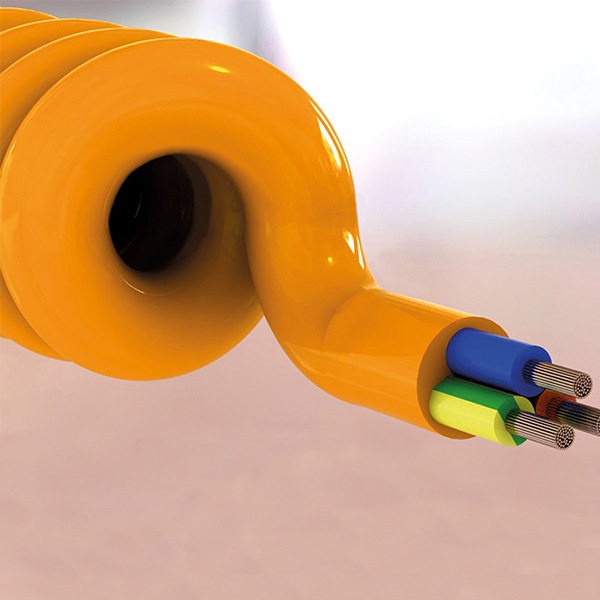

Spiral cable structure:
Conductor: high bending strength multiple fine bare copper wire
Insulation: wear-resistant, high-strength, high-elasticity TPE material
Filling: high-strength tensile fiber
Tape: Toughness, high strength, low viscosity, peelable tape

Outer sheath: wear-resistant, oil-resistant, flame-retardant special modified polyurethane PUR mixture

Polyurethane PUR sheathed spiral cable Specification information:

PVC spiral cable

Pur spiral cable

Pur shielded spiral cable

TPU spiral cable

Elastic elongation

1:3

1:4

1:4

1:3.5

voltage

300/500

300/500

300/500

300/750

working temperature

-5℃~+70℃

-25℃~+80℃

-25℃~+80℃

-25℃~+80℃

Number of cores (customizable)

2,3,5

2,3,4,5,7,12,18

2,4,5,6,7,8,12,25

2,3,4,5,7,8,12

Nominal cross section of core mm 2 (customizable)

0.75,1.5

0.75,1.0,1.5,2.5

0.14,0.25,0.5

0.5,0.75,1.0,1.5,2.5

Screw closure length (WL) mm

200~2800

200~3000

200~1500

500~2500

Tensile range mm

400~5600

800~12000

900~4500

1750~8750

Color of outer sheath

Black, white

Black, white, orange

black

black


Polyurethane PUR sheathed spiral cable is used as a retractable control cable and is widely used in control units that require reciprocating movement, such as various machinery, CNC machine tools, production lines, logistics systems, robots, processing equipment, cranes, production lines, lifting platforms, conveyors , Conveyor belts, agricultural equipment, construction machinery and trucks, etc. and where there are higher requirements for chemical resistance, temperature resistance, and mechanical strength,pur cable.

Polyurethane PUR sheathed spiral cable
