RE-2X(St)Y-PiMF RE-2X(ST)H LSZH Instrumentation Cable are vital for accurate and reliable signal transmission in various industrial applications. Two notable types of instrumentation cables are the RE-2X(St)Y-PiMF and the RE-2X(St)H LSZH. This article will explore their structures, features, applications, and differences, providing an in-depth understanding of their unique attributes and relevance in modern industrial systems.

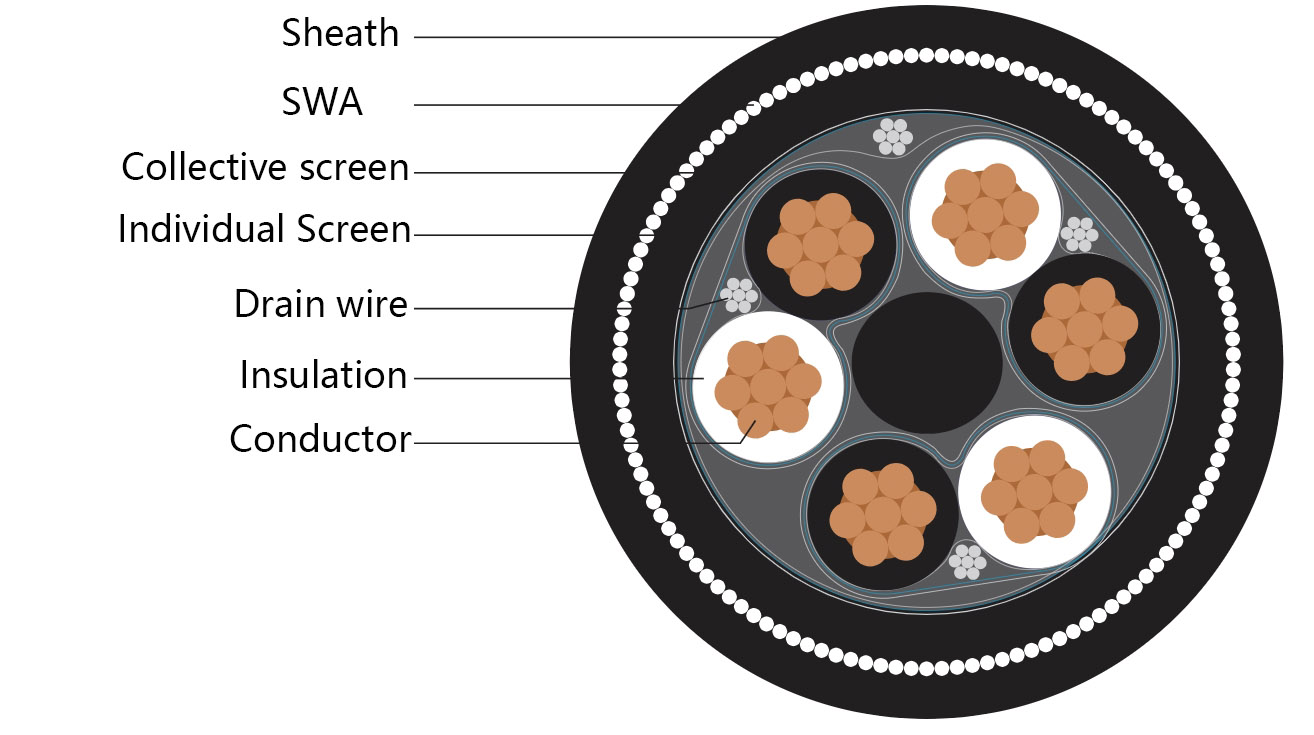

Structure of RE-2X(St)Y-PiMF and RE-2X(St)H LSZH Instrumentation Cables

Conductors:

• Material: Both cables use high-quality copper conductors, which offer excellent electrical conductivity and ensure signal integrity. These conductors are typically stranded to enhance flexibility and durability.
• Configuration: The conductors are twisted into pairs to minimize electromagnetic interference (EMI) and ensure accurate signal transmission.

Insulation:

• Material: Each conductor in both cable types is insulated with cross-linked polyethylene (XLPE) or polyethylene (PE). These materials provide superior thermal stability and electrical insulation properties, ensuring reliable performance in high-temperature environments.

Pair Shielding:

• PiMF (Pair in Metal Foil): Each pair of conductors in the RE-2X(St)Y-PiMF cable is individually shielded with an aluminum foil, which acts as a barrier against electromagnetic interference. This shielding is crucial for maintaining signal integrity in environments with high levels of electrical noise.

Overall Shielding:

• Collective Shield: Both cables feature an overall aluminum foil shield, often combined with a tinned copper braid, providing additional protection against external EMI and ensuring the fidelity of transmitted signals.

Sheathing:

• RE-2X(St)Y-PiMF: The outer sheath is made from polyvinyl chloride (PVC), which offers good mechanical protection and flexibility.
• RE-2X(St)H LSZH: The outer sheath is made from low smoke zero halogen (LSZH) materials, which enhance fire safety by emitting minimal smoke and no toxic halogens in the event of a fire.

Features of RE-2X(St)Y-PiMF and RE-2X(St)H LSZH Instrumentation Cables

High Signal Integrity:

• The twisted pair configuration and individual pair shielding (in the PiMF version) ensure minimal signal loss and high fidelity in data transmission.

EMI Protection:

• Multiple layers of shielding, including pair and overall shields, protect against electromagnetic interference, making these cables suitable for electrically noisy environments.

Thermal Stability:

• Insulation materials like XLPE or PE provide excellent thermal resistance, enabling the cables to perform reliably in high-temperature conditions.

Durability:

• The robust construction, including stranded copper conductors and protective sheathing, ensures long-term durability and resistance to physical and environmental stress.

Fire Safety:

• RE-2X(St)H LSZH: The LSZH sheathing enhances fire safety by emitting minimal smoke and toxic fumes in case of fire, making these cables suitable for use in public buildings and other sensitive areas.

Applications of RE-2X(St)Y-PiMF and RE-2X(St)H LSZH Instrumentation Cables

Industrial Automation:

• Used in automation systems for transmitting control signals between various components, ensuring precise operation and coordination.

Process Control:

• Essential in process industries such as chemical, petrochemical, and food processing, where accurate monitoring and control of processes are crucial for efficiency and safety.

Power Plants:

• Employed in power generation facilities to transmit control and monitoring signals, ensuring reliable operation of equipment and systems.

Oil and Gas:

• Used in the oil and gas industry for instrumentation and control in drilling rigs, refineries, and pipelines, where robust performance in harsh environments is required.

Building Management Systems (BMS):

• Integral to BMS for controlling and monitoring various building systems such as HVAC, lighting, and security.

Telecommunication:

• Utilized in telecom infrastructure to ensure reliable transmission of data and control signals over long distances.

Comparison Between RE-2X(St)Y-PiMF and RE-2X(St)H LSZH Instrumentation Cables

While both the RE-2X(St)Y-PiMF and RE-2X(St)H LSZH cables are designed for high-performance signal transmission in industrial applications, they have key differences:

Sheathing Material:

• RE-2X(St)Y-PiMF: Uses a PVC outer sheath, which offers good mechanical protection and flexibility but may emit toxic fumes and smoke in case of fire.
• RE-2X(St)H LSZH: Features an LSZH outer sheath, which provides enhanced fire safety by emitting minimal smoke and no toxic halogens, making it suitable for use in public buildings and areas with strict fire safety regulations.

Fire Safety:

• RE-2X(St)Y-PiMF: Suitable for environments where fire safety is not the primary concern.
• RE-2X(St)H LSZH: Ideal for high-risk environments where fire safety is crucial, such as public buildings, transport systems, and other areas where low smoke and low toxicity are essential.

Applications:

• RE-2X(St)Y-PiMF: Best suited for general industrial applications requiring robust signal transmission and EMI protection.
• RE-2X(St)H LSZH: Preferred for applications in sensitive or public environments where fire safety is a priority.

Why Choose RE-2X(St)Y-PiMF and RE-2X(St)H LSZH Instrumentation Cables?

The RE-2X(St)Y-PiMF and RE-2X(St)H LSZH instrumentation cables are ideal solutions for applications requiring high signal integrity and robust performance in challenging environments. Here’s why you should consider these cables for your next project:

1. Superior Signal Integrity: The twisted pair configuration and individual pair shielding ensure high fidelity and minimal signal loss, crucial for accurate data transmission.
2. Enhanced EMI Protection: Multiple shielding layers protect against electromagnetic interference, making these cables perfect for electrically noisy environments.
3. Thermal and Environmental Durability: With XLPE or PE insulation, these cables can withstand high temperatures and harsh environmental conditions, ensuring long-term reliability.
4. Fire Safety: The LSZH sheathing option enhances safety by reducing smoke and toxic fumes in the event of a fire, making it suitable for use in public and sensitive areas.
5. Versatility: Suitable for a wide range of applications, from industrial automation and process control to power plants and telecommunication.

Applications of RE-2X(St)Y-PiMF and RE-2X(St)H LSZH Instrumentation Cables

• Industrial Automation: Ensures precise signal transmission between automation components, enhancing operational efficiency.
• Process Control: Crucial for accurate monitoring and control in industries such as chemical, petrochemical, and food processing.
• Power Plants: Reliable transmission of control and monitoring signals in power generation facilities.
• Oil and Gas: Robust performance in harsh environments, making it ideal for instrumentation and control in drilling rigs, refineries, and pipelines.
• Building Management Systems (BMS): Integral to controlling and monitoring HVAC, lighting, and security systems.
• Telecommunication: Ensures reliable data and control signal transmission over long distances in telecom infrastructure.

RE-2X(St)Y-PiMF RE-2X(ST)H LSZH Instrumentation Cable offer superior performance, durability, and versatility, making them excellent choices for various industrial applications. Their robust designs, combined with high signal integrity and EMI protection, ensure reliable and accurate data transmission even in the most challenging environments. Whether you are looking to upgrade your existing systems or implement new ones, these cables provide the quality and reliability needed for modern industrial and automation applications. By choosing the RE-2X(St)Y-PiMF and RE-2X(St)H LSZH cables, you ensure that your instrumentation and control systems are equipped to handle the demands of today's complex industrial processes.
