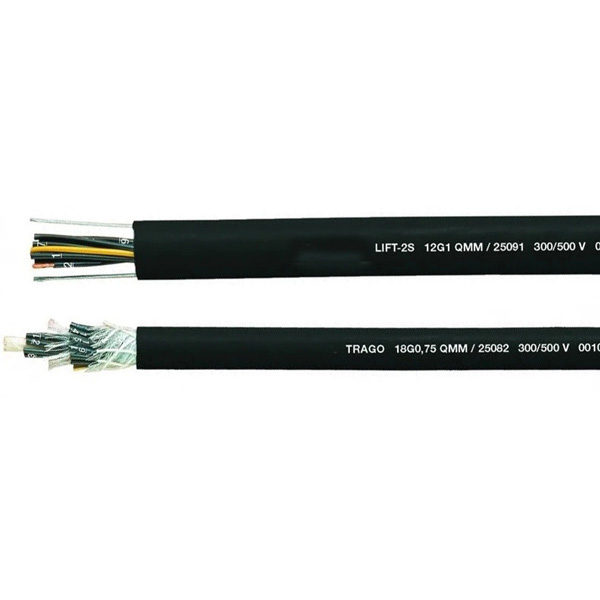

Product description: TRAGO-LIFT control cable has a specially designed textile protective braid over each layer of cores which enables this cable to absorb the stresses caused by the internal movement of the cores created
TRAGO-LIFT control cable has a specially designed textile protective braid over each layer of cores which enables this cable to absorb the stresses caused by the internal movement of the cores created by external mechanical stress and extreme conditions.These cables are used as control or feeder cables in lifts and hoists. The special attention given to both production and material quality for these cables has made them ideal even for use under extreme conditions.PENDANT 2S Yellow Steel Lift Cable has also proven itself to be ideally suited for installation in conveyor systems and manual control units. The external steel support wires can be dismounted without damaging the cable insulation. TRAGO-LIFT control cable Construction: Super-fine bare copper strands Strands to VDE-0295 Class-6, IEC 60228 Cl-6 Special PVC core insulation Color code VDE-0293 black & numbered Special hemp center support core Multi-layer fleece braid over cores Special PVC outer jacket - black (RAL 9005) Oil & chemical resistant TRAGO-LIFT control cable Technical: Working voltage: 300/500 volts Testing voltage: 3000 volts Flexing bending radius: 20.0 x Ø Flexing temp: -15º C to +40º C Static temp: -40º C to +70º C Flame retardant: IEC 60332.1
Insulation resistance: > 20 MΩ x km
TRAGO-LIFT control cable is a PVC lift and hoist control cable with a central hemp support core used as a strain bearing element in high suspension lengths. Lift cables are designed to be used in lifts, elevator constructions and in conveyor installations.
