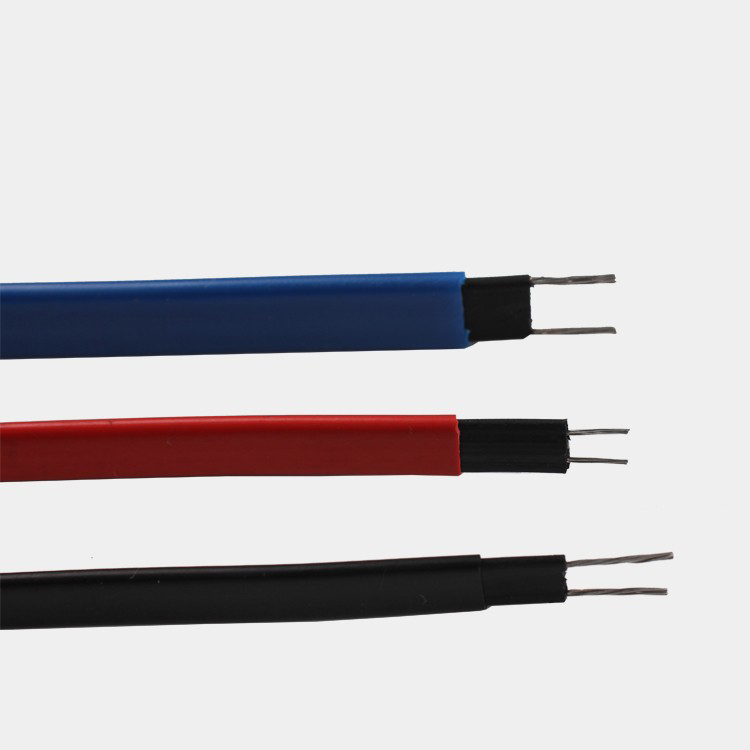

Self Regulating Heating Cable

Customized Self Limiting Heating Tape Snow Melting Heating Cable

Self Limiting Heating Tape
Product description: Self-limiting temperature heating cable is also called "self-limiting heating cable". It is between two parallel wires, evenly covered with a flat FTC (positive resistance temperature coefficient) hea
INQUIRY

Self-limiting temperature heating cable is also called "self-limiting heating cable". It is between two parallel wires, evenly covered with a flat FTC (positive resistance temperature coefficient) heating material. After the Customized Self Limiting Heating Tape Snow Melting Heating Cable is connected to the power supply (note that the tail wire core must not be connected), the current is conducted by a wire core. The PTC material is routed to another core to form a loop. The electric energy can increase the temperature of the conductive material, and the resistance increases accordingly. When the temperature of the core band rises to a certain value, the resistance is so large that the current is almost blocked, and the temperature is no longer increased, and at the same time, the heating cable is heated to a lower temperature. System heat transfer. The power of the electric heating cable is mainly controlled by the heat transfer process, and the output power is automatically adjusted according to the temperature of the heated system, whereas the conventional constant power heater does not have this function.

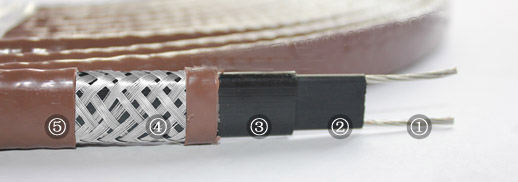

Customized Self Limiting Heating Tape

1 copper core wire: 7 × 0.50; 7 × 0.32; 19 × 0.41;
2 conductive plastic layer: ordinary PTC; flame retardant PTC; fluorine-containing PTC;
3 insulating layer: modified polyolefin; flame retardant polyolefin; fluorine-containing polyolefin; perfluorinated material;
4 Shield: tinned soft round copper wire (covering density 80%);
5 sheath layer: modified polyolefin; flame retardant polyolefin; fluorine-containing polyolefin; perfluorinated material;
There is no need for temperature control equipment for Self Limiting Heating Tape Snow Melting Heating Cable. Safety explosion-proof, economical and energy-saving, widely used in oil, chemical, steel, electric power and other industrial enterprises, pipelines, storage tanks with heat insulation, anti-coagulation, anti-freezing and roof snow melting / melting ice, ground snow melting / melting ice. The cable is suitable for heating with pipes in common areas, hazardous areas and corroded areas.
