Highly Flexible Chain Cable

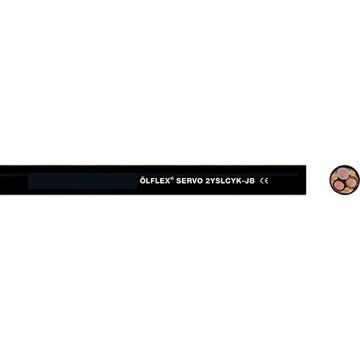

SERVO EMC-optimised motor cable

Product description: SERVO EMC-optimised motor cable are flexible cables having special EMC- performance due to double shielded, low capacitance design. Ideal for frequency converters for variable speed of 3 phase AC moto
INQUIRY

SERVO EMC-optimised motor cable are flexible cables having special EMC- performance due to double shielded, low capacitance design. Ideal for frequency converters for variable speed of 3 phase AC motors, small, medium and large sizes. SERVO EMC-optimised motor cable having a special concentric conductor array design, where earth conductor is split into 3 individuals.

SERVO EMC-optimised motor cable application range
Connecting cable between frequency converter and motor
In dry, damp or wet interiors
Paper industry
Chemical industry
Heavy industry
SERVO EMC-optimised motor cable Make-up
Fine-wire, bare copper conductor
Core insulation: PE
Cores twisted concentrically (symmetrically splitted protective conductor of 3+3 version is gusset-filling divided between the power cores)
Screening: wrapping of laminated aluminium foil in combination with tinned copper braiding
4-core version: optional transparent or black PVC outer sheath
3+3 core version: PVC outer sheath, black - cold flexible
