Product description: SERVO FD CY Screened flexible cable is Screened, low capacitive servo cable with PVC outer sheath for flexible power chain application,Low capacitive and screened servo motor cables for mean load in p

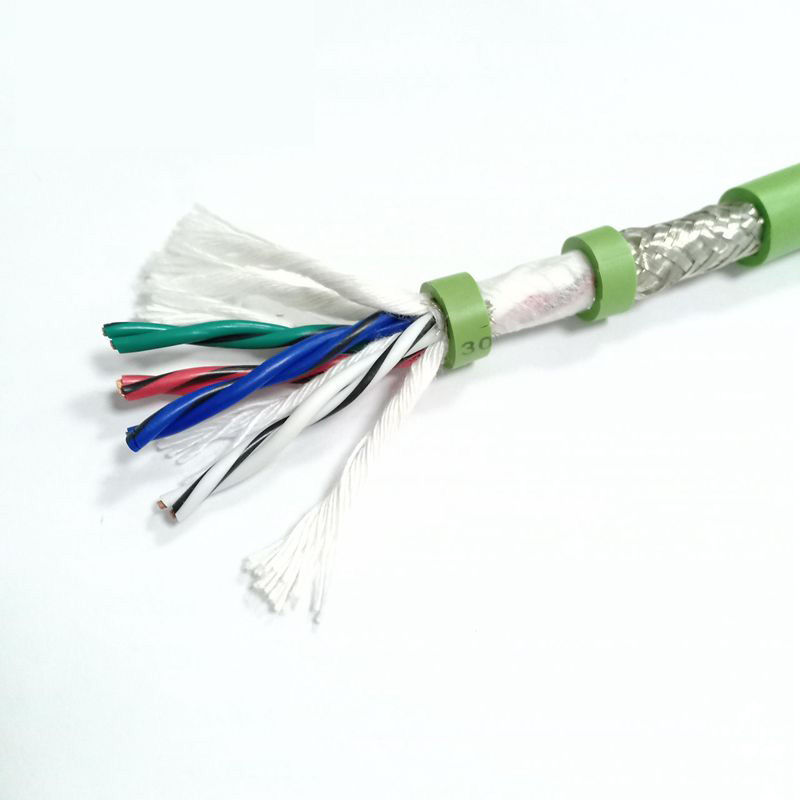

SERVO FD CY Screened flexible cable is Screened, low capacitive servo cable with PVC outer sheath for flexible power chain application,Low capacitive and screened servo motor cables for mean load in power chain applications. SERVO FD CY Screened flexible cable Make-up Extra-fine wire strand made of bare copper wires (class 6) Core insulation: polypropylene (PP) Cores twisted in short lay lengths Non-woven wrapping Tinned-copper braiding PVC outer sheath, orange (RAL 2003) Core identification code: Black with white numbers acc. to VDE 0293-334 Conductor stranding: Extra-fine wire according to VDE 0295, class 6/IEC 60228 class6 Minimum bending radius: Flexing: up from 7.5 x outer diameter Fixed installation: 4 x outer diameter Nominal voltage: U0/U: 600/1000 V Test voltage: Core/Core: 4 kV Core/Screen: 4 kV Protective conductor: G = with gn-ye protective conductor Temperature range: Flexing: -5°C to +70°C Fixed installation: -40°C to +80°C SERVO FD CY Screened flexible cable Well-proven and reliable，Low capacitance design enables longer cable connection between frequency converter and motor，Copper screening complies with EMC requirements and protects against electromagnetic interference,Highly Flexible Chain Cable.
