Flex Cable

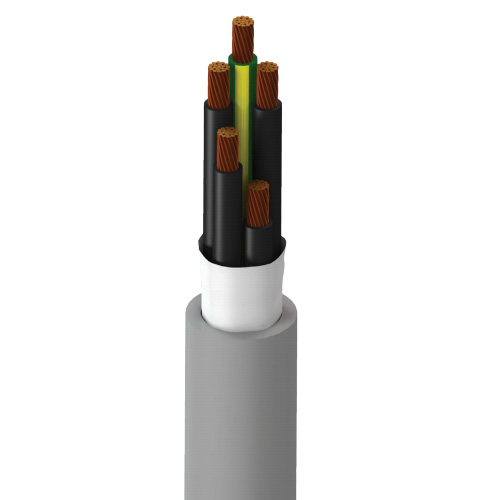

Flex 600V Unshielded flex cable

flex cable
flex cable
Product description: Flex 600V Unshielded flex cable conductor structure of the flexible cable is mainly based on the stranded copper conductor structure of DIN VDE 0295 and IEC 228. The sheath is mostly made of low-visco
INQUIRY

Flex 600V Unshielded flex cable conductor structure of the flexible cable is mainly based on the stranded copper conductor structure of DIN VDE 0295 and IEC 228. The sheath is mostly made of low-viscosity, flexible and wear-resistant materials to slow down the wear rate of the cable in continuous back and forth movement.Reduces total cost of ownership through reduced cable maintenance and improved system uptime，Eliminates common failure modes which cause other industry cables to fail, including cable fatigue, torque and cable memory.

Flex 600V Unshielded flex cable Operating Temperature

-5°C to +90°C (flexing)

-40°C to +90°C (stationary)

Conductor Color

Coding Numbered black

conductors 1 yellow/green ground

conductor (3 conductor and greater)

Jacket color: chrome

Flex 600V Unshielded flex cable Materials

Finely stranded bare copper conductors

Lubricated PVC insulation

Oil-resistant PVC jacket

Flex 600V Unshielded flex cable are mainly divided into: sensor/encoder cables, servo motor cables, robot cables, cleaning cables, and drag chain cables.
