  • 2X1.5mm2 H05RNH2-F CPE Parallel Flat Twin Rubber Cable
  • 2X1.5mm2 H05RNH2-F CPE Parallel Flat Twin Rubber Cable

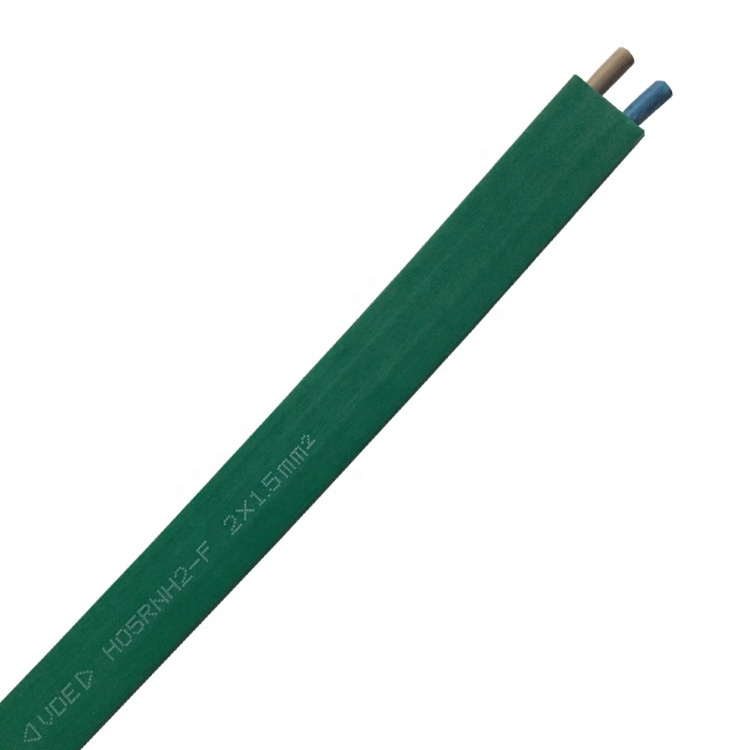

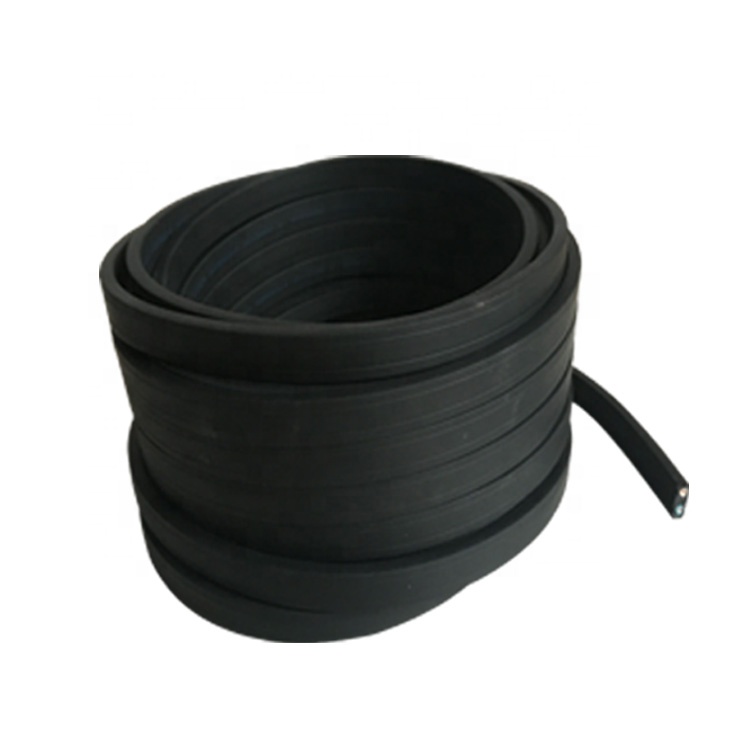

2X1.5mm2 H05RNH2-F CPE Parallel Flat Twin Rubber Cable2X1.5mm2 H05RNH2-F CPE Parallel Flat Twin Rubber Cable

2X1.5mm2 H05RNH2-F CPE Parallel Flat Twin Rubber Cable

  • Parallel Flat Twin Rubber Cable
  • Product description: 2X1.5mm2 H05RNH2-F CPE Parallel Flat Twin Rubber Cable is primarily used in electrical equipment used under low mechanical pressure for dry, wet indoor or outdoor environments. It is often used in hom
  • INQUIRY
2X1.5mm2 H05RNH2-F CPE Parallel Flat Twin Rubber Cable is primarily used in electrical equipment used under low mechanical pressure for dry, wet indoor or outdoor environments. It is often used in homes, where there is any low mechanical damage such as the connection between electrical appliances under low mechanical tension in the office. Rubber Cable also suitable for fixed installation in furniture, decorative materials, wall partitions and reserved building facilities. The maximum operating voltage in a single-phase or three-phase system is Uo/U 318/550 V. In the maximum operating voltage of the DC system, this cable is resistant to ozone and grease.

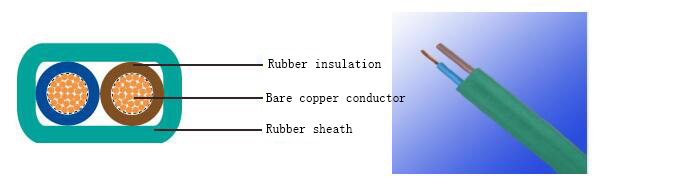

2X1.5mm2 H05RNH2-F CPE Parallel Flat Twin Rubber Cable structure:
- bare copper conductor
- in accordance with DIN VDE 0295 cl.5, IEC 60228 cl.5
-Rubber core insulation E14-VDE-0282 part 1
- Color coding conforms to VDE 0293-308
- Yellow-green grounding wire (3 cores and above)
- Neoprene sheath EM2
2X1.5mm2 H05RNH2-F CPE Parallel Flat Twin Rubber Cable Core separation:
2 cores: blue, brown (brown);
3 cores: green/yellow, blue, brown (brown);
4 cores: yellow/green, black, brown (brown), blue;
5 cores: green/yellow, brown (brown), black, gray, blue.
2X1.5mm2 H05RNH2-F CPE Parallel Flat Twin Rubber Cable Technical Parameters:
- Working voltage VDE: 300/500V
- Test voltage: 2000V
- Soft bending radius: 7.5 times diameter
- Static bending radius: 4 times diameter
- Bending temperature: -30 ° C to 60 ° C
- Short circuit temperature: 200 ° C
- Flame retardant standard: IEC 60332.1

-Insulation resistance: 20MΩ×km

Flat Twin Rubber Cable
