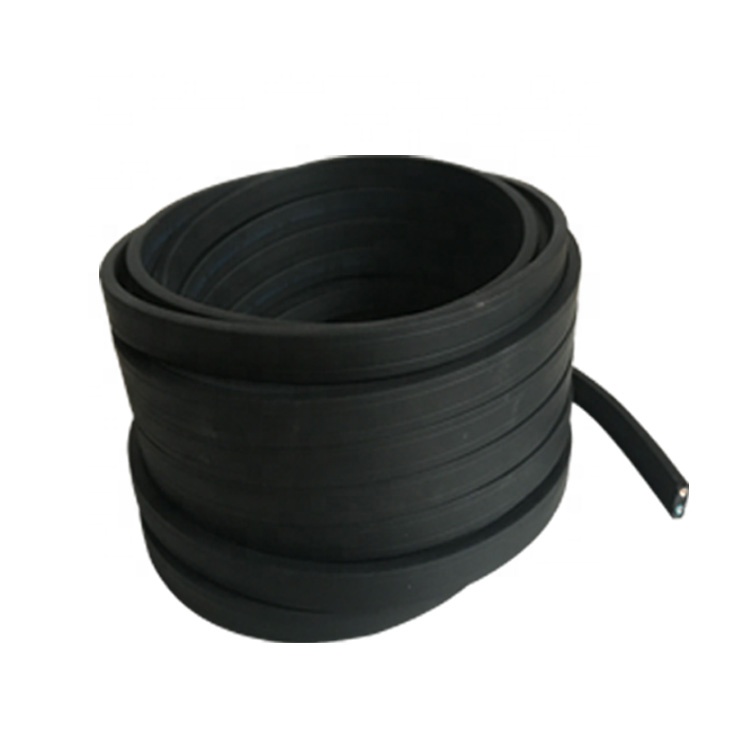

Product description: H05RNH2-F Flat Rubber Cable is Suitable for fixed installation in furniture, upholstery, wall partitions and prefabricated building parts. Resistant to ozone and grease. These Rubber Cable is soft an

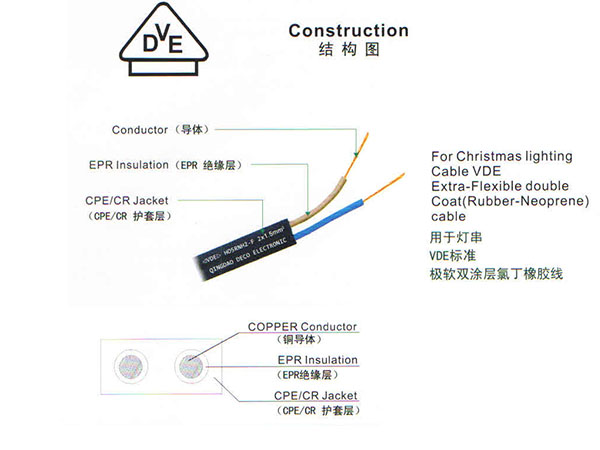

H05RNH2-F Flat Rubber Cable is Suitable for fixed installation in furniture, upholstery, wall partitions and prefabricated building parts. Resistant to ozone and grease. These Rubber Cable is soft and suitable for use in low-intensity dry, wet indoor or outdoor electrical installations, typically for electrical connections in low-strength home, office and light-duty tools. H05RNH2-F Flat Rubber Cable structure: - bare copper conductor - in accordance with DIN VDE 0295 cl.5, IEC 60228 cl.5 -Rubber core insulation E14-VDE-0282 part 1 - Color coding conforms to VDE 0293-308 - Yellow-green grounding wire (3 cores and above) - Neoprene sheath EM2 H05RNH2-F Flat Rubber Cable Core separation: 2 cores: blue, brown (brown); 3 cores: green/yellow, blue, brown (brown); 4 cores: yellow/green, black, brown (brown), blue;
5 cores: green/yellow, brown (brown), black, gray, blue.
H05RNH2-F Flat Rubber Cable insulating layer and the sheath are made of natural rubber, styrene butadiene rubber, ethylene propylene rubber, etc., in addition to satisfying the insulation performance and physical and mechanical properties, the requirements are resistant to aging and abrasion, and some products are required to be resistant to oil and flame.
