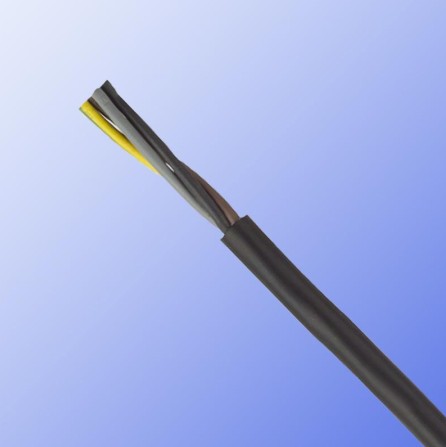

H05RR-F Flexible Rubber Cable

H05RR-F Flexible Rubber Cable
Product description: H05RR-F Flexible Rubber Cable use multiple copper single-wire stranded conductors (multiple copper single-wire stranded conductors), EPR (ethylene-propylene) insulation and sheath, allowing conductor
INQUIRY

H05RR-F Flexible Rubber Cable use multiple copper single-wire stranded conductors (multiple copper single-wire stranded conductors), EPR (ethylene-propylene) insulation and sheath, allowing conductors to work up to 60 ° C. H05RR-F is a line for indoor use, raw materials are made of natural rubber . The H05RN-F rubber cable is for outdoor use. The material is neoprene. This rubber is more resistant to temperature and aging than H05RR, so it is generally used in harsh outdoor environments.

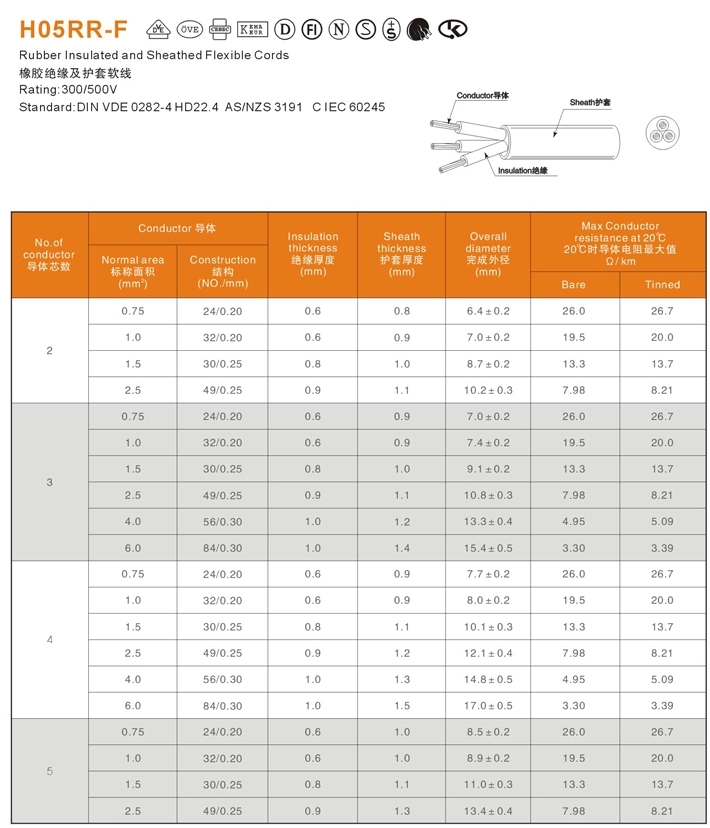

H05RR-F Flexible Rubber Cable structure
- Multi-strand soft bare copper conductor
- Follow VDE-0295 Cl 5, IEC 60228 Cl-5
- Rubber insulated EI4 follows VDE-0282 part 1
- Color coding follows VDE-0293-308 and HD 186
- Yellow-green grounding wire (three cores and three cores or more)
- Neoprene sheath EM3
H05RR-F Flexible Rubber Cable Technical characteristics
- Operating voltage: 300/500 V
- Test voltage: 2000 V
- Dynamic bending radius: 8 x Ø
- Fixed installation bending radius: 6 x Ø
- Operating temperature range: -30o C to +60o C
- Temperature achievable in the event of a short circuit: +200 o C
- Flame retardant: IEC 60332.1

- Insulation resistance: 20 MΩ x km

H05RR-F Flexible Rubber Cable electronic handheld devices for connection or for home and office use. Suitable for use in dry, wet rooms, not for outdoor use. The black rubber jacket is effective against ozone and UV rays.
