  • Product description: MI heating cable structure is made of electric heating alloy wire (heating body), inorganic mineral insulator and sheath metal sleeve after repeated stretching to form a solid body with high density.
  • INQUIRY
MI heating cable structure is made of electric heating alloy wire (heating body), inorganic mineral insulator and sheath metal sleeve after repeated stretching to form a solid body with high density. It can meet the needs of high temperature conditions and high heating power (up to 250W/m), and the highest temperature can reach 600°C; the conductor resistance value ranges from 0.002Q/m to 36Q/m, and it has excellent mechanical strength and corrosion resistance. Mainly used in nuclear industry, construction industry, metal manufacturing industry, tanks, container heating, high-temperature industrial pipeline heating, process media anti-condensation and viscosity reduction, various industrial electric heaters, etc., and has been verified by more than four international applications. ten years.
MI heating cable name
MI heating cable

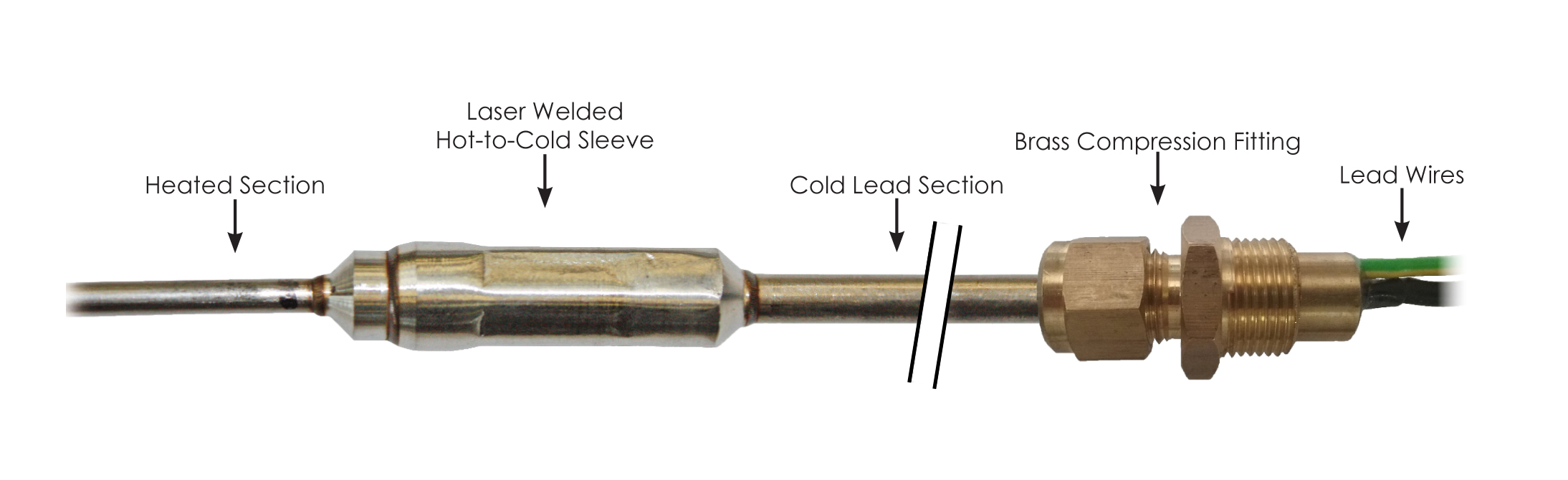

MI heating cable structure
heat trace cable
MI heating cable Characteristic parameter

Technical parameter

Nickel chromium stainless steel sleeve structure

825Alloy sleeve structure

Heating power (W/m)

50-250

50-250

Maximum surface temperature（°C）

650

800

Maximum operating temperature（°C）

450

550

external diameter

(mm)

Single core

Ø3.5-6.5

Ø3.5-6.5

Double core

Ø5.5-11

Ø5.5-11

Material (mm)

Conductive core wire

Nickel chromium alloy

Nickel chromium alloy

Insulating material

Magnesia powder

Magnesia powder

Metal sheath

stainless steel

825alloy

self regulating heating cable

MI heating cable Technical index
•Length: ±2%.
• Resistance value tolerance: ±10%.
• Withstand voltage performance: heating cable withstand voltage, 1500VAC/1min.
• Heating element withstand voltage: 1200VAC/1min
•Insulation resistance: finished product test -100MQ/500VDC.
•Impermeability: After the entire cable (including connectors) is immersed in water for 12 hours, the insulation resistance shall not be less than -100 M/500VDC.
MI heating cable is a kind of cable that uses nickel-chromium alloy as the conductor, magnesium oxide mineral insulation material as the insulator, and metal material stainless steel or alloy material as the sheath. When necessary, a plastic outer sheath or a layer of plastic outer sheath can be extruded outside the metal sheath. Low-smoke no chimney outer sheath.
Stainless steel sheathed mineral insulated heating cable
The stainless steel sheathed mineral insulated heating cable can meet the needs of high temperature conditions and high heating power (up to 250Wm). The maximum temperature of this series of heating cables can reach 650℃; the mineral insulated cable has excellent mechanical strength and corrosion resistance.
825 alloy sheathed mineral insulated heating cable
825 alloy sheathed mineral insulated heating cables can meet the needs of high temperature conditions and high heating power (up to 250/m). The maximum temperature of this series of heating cables can withstand up to 800 °C; the range of conductor resistance values is from mineral insulated cables with excellent Mechanical strength, high temperature resistance and corrosion resistance, suitable for various explosion-proof occasions and special areas.MI heating cable,mineral insulated heating cable
