  • Product description: Marine cable CJPF86 adopts XLPE insulated low-smoke halogen-free inner sheath, tinned copper wire braid, low-smoke halogen-free material as outer sheath, we Anhui Tiankang can use EPR insulation, XLPE
  • INQUIRY
Marine cable CJPF86 adopts XLPE insulated low-smoke halogen-free inner sheath, tinned copper wire braid, low-smoke halogen-free material as outer sheath, we Anhui Tiankang can use EPR insulation, XLPE according to user needs Insulation, PVC insulation, natural-styrene butadiene insulation, low-smoke halogen-free insulation for the production of marine power cables. It is mainly used for the power, lighting and general control devices of various river and sea ships and offshore oil platforms and other various water structures. We are a professional marine cable manufacturer that has passed the American Bureau of Shipping ABS certification.

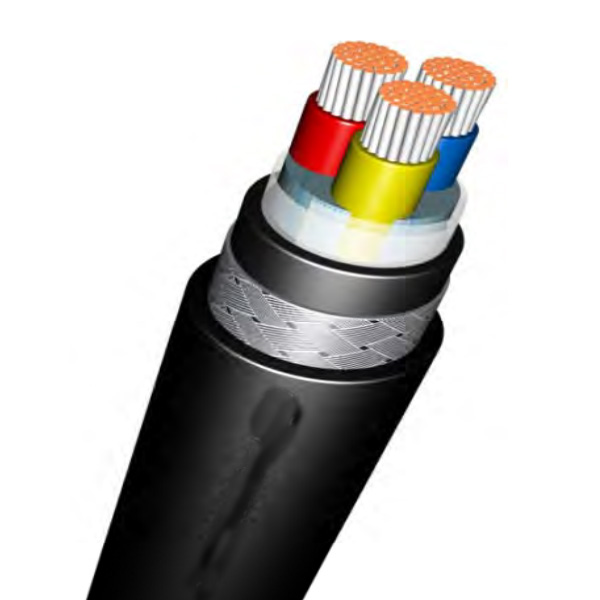

Marine cable CJPF86 structure diagram is as follows:
Marine cable
Marine cable CJPF86 Use characteristics of CJPF86 / SC marine cable
1. Power system with rated voltage U0 / U of 0.6 / 1kV and below. The long-term allowable maximum working temperature of the cable conductor is:
90 ℃ for EPR insulated marine power cable
XLPE insulated marine power cable is 90 ℃
PVC insulated marine power cable 70 ℃
Natural-styrene butadiene insulated marine power cable 65 ℃
2. The maximum temperature of the cable conductor during short circuit (maximum duration does not exceed 5S):
EPR insulated marine power cable is 250 ℃
XLPE insulated marine power cable is 250 ℃
PVC insulated marine power cable 150 ℃
Natural-styrene butadiene insulated marine power cable 150 ℃
3. The laying temperature of XLPE insulated and PVC insulated cables should not be lower than 0 ℃, the minimum bending radius of single-core cable is 20D, multi-core cable is 15D (D is the cable outer diameter). The laying temperature of EPR insulated and natural-SBR insulated marine cables should not be lower than 0 ℃, the minimum bending radius of single-core cable is 10D, multi-core cable is 6D (D is the cable outer diameter).
