XLPE insulated halogen-free low-smoke marine electric wire

marine electric wire

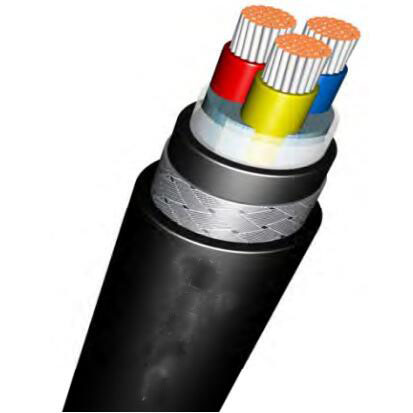

XLPE insulated halogen-free low-smoke marine electric wire
Product description: XLPE insulated halogen-free low-smoke marine electric wire can be used for water in various ships and offshore oil platforms Power lighting and general control devices for buildings. For metallurgy
INQUIRY

XLPE insulated halogen-free low-smoke marine electric wire can be used for water in various ships and offshore oil platforms Power lighting and general control devices for buildings. For metallurgy, chemical industry Industrial and mining enterprises such as electricity and electricity are equally applicable.

Standards applied

IEC 60092-353 – Design
IEC 60228 Class 2 – Conductor
IEC 60092-351 – Insulation
IEC 60092-359 – Sheath
IEC 60332-3-22 – Flame Retardant
IEC 60754 – Halogen Free

Construction

Components	Code	Material/Description
Series code	C	Marine power cable
Conductor		Stranded tinned annealed copper (STC), IEC 60228 Class 2
Insulation	J	XLPE, IEC 60092-351
Inner sheath	PJ	Halogen-free flame retardant thermoset compound (SHF2)
Inner sheath	PF	Halogen-free flame retardant thermoplastic compound (SHF1 )
Armor	8	Tinned copper wire braid (TCWB)
Armor	9	Galvanized steel wire braided (GSWB)
Outer sheath	0	Without outer sheath
	5	Halogen-free flame retardant thermoset compound (SHF2)
	6	Halogen-free flame retardant thermoplastic compound (SHF1 )
Outer sheath color		Black or you can custom
Flammability	SC	LSHF Flame retardant, IEC60332-3-22(CAT.A)
