Marine cables are wire and cable for power, lighting, control, communication, and microcomputer systems of various types of ships, offshore oil platforms, and water buildings. Due to the harsh environmental conditions,XLPE insulated PVC sheath marine power cable is required to be safe and reliable, long in life, small in size, light in weight, and excellent in temperature resistance, fire resistance, flame retardancy, oil resistance, moisture resistance, seawater resistance, and excellent electrical and mechanical properties. Marine power cables are a type of marine cable.

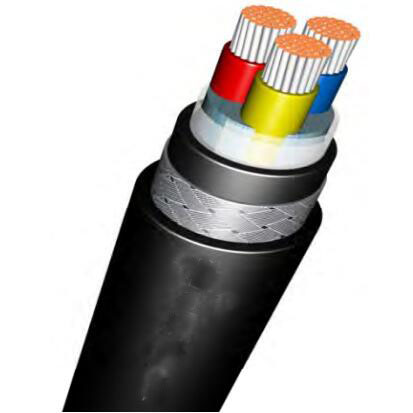

marine cable Construction
Components
Code
Material/Description
Series code
C
Marine power cable
Conductor
Stranded tinned annealed copper (STC), IEC 60228 Class 2
Insulation
J
XLPE, IEC 60092-351
Inner sheath
PJ
Halogen-free flame retardant thermoset compound (SHF2)
PF
Halogen-free flame retardant thermoplastic compound (SHF1 )
Armor
8
Tinned copper wire braid (TCWB)
9
Galvanized steel wire braided (GSWB)
Outer sheath
0
Without outer sheath
5
Halogen-free flame retardant thermoset compound (SHF2)
6
Halogen-free flame retardant thermoplastic compound (SHF1 )
Outer sheath color
Black or you can custom
Flammability
SC
LSHF Flame retardant, IEC60332-3-22(CAT.A)
The choice of marine cable model should consider the following factors:
1, the use of cable - for power, lighting and signal transmission.
2, cable laying position - whether long-term immersion, low temperature and whether shielding is required.
3, working conditions - fixed laying, number of wearing pipes and movable.
