Ethylene propylene rubber(EPR) Insulation marine power wire

Ethylene propylene rubber(EPR) Insulation marine power wire
marine power wire
Product description: The marine power cable is a kind of marine cable used for power, lighting and general control of marine cables for waterborne buildings such as various ships and offshore oil platforms.
INQUIRY

The marine power cable is a kind of marine cable used for power, lighting and general control of marine cables for waterborne buildings such as various ships and offshore oil platforms. Marine power cables play an important role in the ship's power system and are the lifeblood of the entire ship. They are responsible for transmitting and distributing electrical energy to various types of electrical equipment on board.
The main parameters of marine power cables include model specifications, core number, combustion characteristics, rated voltage, temperature, and nominal cross-sectional area. Its implementation standards are: IEC60092-350, IEC60092-353 or GB9331-88.

Normally, the power marine cable is a conductor (cable core) from the inside to the outside, an insulating layer (the insulation can withstand the voltage of the grid), a filling and shielding layer (made of semiconductor or metal materials), and a sheath (maintaining the insulation properties of the cable). ) Several major parts.

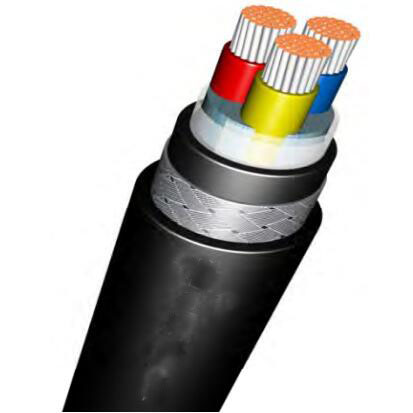

marine cable Construction

Components	Code	Material/Description
Series code	C	Marine power cable
Conductor		Stranded tinned annealed copper (STC), IEC 60228 Class 2
Insulation	E	Ethylene propylene rubber(EPR), IEC 60092-351
Inner sheath	PJ	Halogen-free flame retardant thermoset compound (SHF2)
Inner sheath	PF	Halogen-free flame retardant thermoplastic compound (SHF1 )
Armor	8	Tinned copper wire braid (TCWB)
Armor	9	Galvanized steel wire braided (GSWB)
Outer sheath	0	Without outer sheath
	5	Halogen-free flame retardant thermoset compound (SHF2)
	6	Halogen-free flame retardant thermoplastic compound (SHF1 )
Outer sheath color		Black or you can custom
Flammability	SC	LSHF Flame retardant, IEC60332-3-22(CAT.A)
