Marine cable

Ethylene propylene rubber insulation neoprene sheath(CEFR) marine power cable

marine power cable
Product description: Ethylene propylene rubber insulation neoprene sheath(CEFR) marine power cable is suitable for transmission of electric energy in various water buildings such as rivers and seas and offshore oil platfo
INQUIRY

Ethylene propylene rubber insulation neoprene sheath(CEFR) marine power cable is suitable for transmission of electric energy in various water buildings such as rivers and seas and offshore oil platforms. CEFR cable is suitable for transmission of electric energy in various water buildings such as rivers and seas and offshore oil platforms.
Ethylene propylene rubber insulation neoprene sheath(CEFR) marine power cable is an EPR insulated neoprene sheathed marine power flexible cable for connection to mobile appliances. The fixed laying of tinned copper wire is used for the anti-interference place, the fixed laying of galvanized steel wire, and the use of electric anti-mechanical external force.

Marine cable structure features

Components	Code	Material/Description
Series code	C	Marine power cable
Conductor		Stranded tinned annealed copper (STC), IEC 60228 Class 2
Insulation	E	Ethylene propylene rubber(EPR), IEC 60092-351
Inner sheath	F	Neoprene
Inner sheath	V	PVC
Armor	8	Tinned copper wire braid (TCWB)
Armor	9	Galvanized steel wire braided (GSWB)
Outer sheath	0	Without outer sheath
	5	Halogen-free flame retardant thermoset compound (SHF2)
	6	Halogen-free flame retardant thermoplastic compound (SHF1 )
Outer sheath color		Black or you can custom
Flammability	SC	LSHF Flame retardant, IEC60332-3-22(CAT.A)

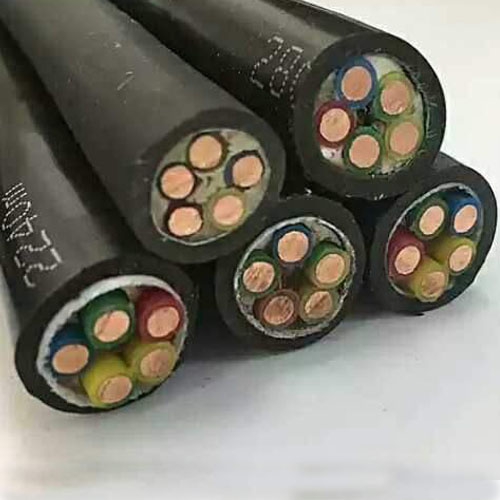

Ethylene propylene rubber insulation neoprene sheath(CEFR) marine power cable is a kind of soft and movable cable which is made up of multiple strands of thin copper wire as conductor, and is surrounded by rubber insulation and rubber sheath. In addition to the power transmission on board, CEFR cable is also applicable to industrial and mining enterprises such as metallurgy, chemical industry and electric power.
