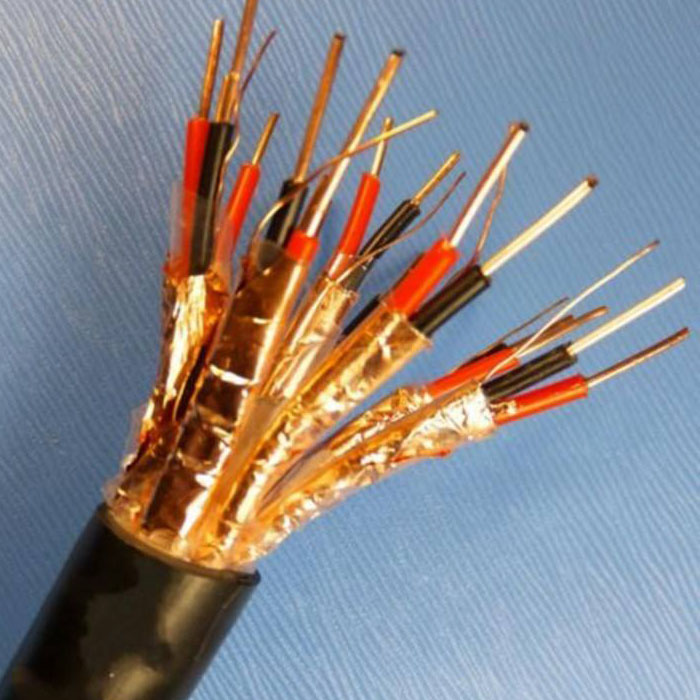

Copper core Teflon insulated and sheathed copper tape wrapped shielded control flexible cable
Copper core Teflon insulated and sheathed copper tape wrapped shielded control flexible cable
Product description: Copper core Teflon insulated and sheathed copper tape wrapped shielded control flexible cable with fluoroplastic as the outer sheath wire and cable. Fluoroplastic cable has excellent weather resistanc
Copper core Teflon insulated and sheathed copper tape wrapped shielded control flexible cable with fluoroplastic as the outer sheath wire and cable. Fluoroplastic cable has excellent weather resistance, heat resistance, low friction coefficient, stable chemical properties and good electrical insulation properties. Therefore, fluoroplastic cables have important applications in industries with harsh environments such as petroleum, metallurgy, chemicals, electric power, and aerospace. Teflon high temperature cable structure features: Conductor material: multiple strands of oxygen-free copper wire Insulation material: fluoroplastic insulation Shielding material: copper tape wrapped shield Sheath material: fluoroplastic sheath Structure: stranded type Core color: 5 colors or less, 5 cores or more black body white number Flame retardancy: in accordance with IEC 60332 Working voltage: 300/500V Factory test voltage: 2000V-3000V Minimum bending radius: cable outer diameter * 8 times Long-term working temperature should not be higher than +200 °C, long-term working temperature should not be lower than -20 °C Teflon high temperature cable has flexibility, moisture resistance, cold resistance, oil resistance, UV resistance, can withstand moderate mechanical stress, has strong anti-electromagnetic interference capability, and the cable appearance is round. whole. Fluoroplastics have a high degree of chemical stability and chemical resistance, fire resistance, high temperature resistance, flame retardant and other characteristics, so it has a wide range of applications in the wire and cable industry, special cables such as: high temperature resistant cable, flame retardant cable, corrosion resistant cable, etc. Most of them use fluoroplastic as the outer layer of the sheath.
