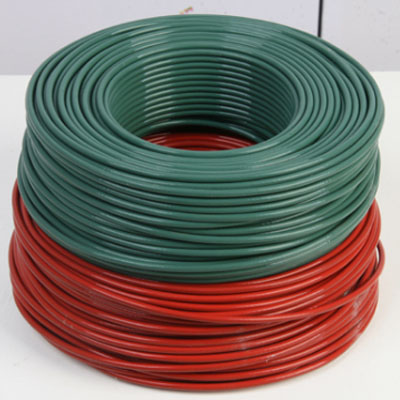

Fluoroplastic insulated and sheathed high temperature control cable

Fluoroplastic insulated and sheathed high temperature control cable
Product description: Fluoroplastic insulated and sheathed high temperature control cable is suitable for the transmission line of electrical instrument rated voltage 450/750V and below
INQUIRY

Fluoroplastic insulated and sheathed high temperature control cable is suitable for the transmission line of electrical instrument rated voltage 450/750V and below, and the transmission line of automatic control system. It has excellent performances such as oil resistance, water resistance, wear resistance, acid and alkali resistance, various corrosive gases, aging resistance and non-combustion. Suitable for metallurgy, electric power, petrochemical and other industries.
Fluoroplastic insulated and sheathed high temperature control cable Use characteristics
1. AC rated voltage: U0/U 450/750KV
2. Maximum working temperature: Polytetrafluoroethylene propylene (F46) insulation does not exceed 200 ° C
Soluble polytetrafluoroethylene (PFA) insulation does not exceed 260 ° C
3. Minimum ambient temperature: PVC sheath: fixed laying -40 ° C, non-fixed laying -15 ° C
Fluoroplastic and silicone rubber sheath: fixed laying -60 ° C, non-fixed laying -20 ° C
4. The cable installation temperature should not be lower than 0 °C (fluorine plastic, silicone rubber and nitrile sheathed cable not lower than -25 ° C).

5. The allowable bending radius of the cable: the minimum non-armored cable is 6 times the outer diameter of the cable, the copper tape shielded or steel tape armored cable is 12 times the outer diameter of the cable, and the fluoroplastic insulated and sheathed cable is the minimum outer diameter of the cable 8 Times.

Model name meaning

Series code……………………………………………K
Material Code
Copper conductor……………………………………omitted
Polytetrafluoroethylene propylene (F46) insulation………………………………………F
Soluble polytetrafluoroethylene (PFA) up to 260 ° C sheath……………………………………………F
Classifi ed by Structure and Performance
Braided shielding………………………………………P
Copper tape shielding ………………………………P2
Soft structure …………………………………………R
Round type ……………………………………………omitted
Flat type ………………………………………………B

Basic model and name
(ZR192-)KFF
Fluorine 46 (Imported PFA) Insulated and Sheathed Control Cable
(ZR192-)KFFP
Fluorine 46 (Imported PFA) insulated and sheathed copper wire braided shielded control cable
(ZR192-)KFFR
Fluorine 46 (Imported PFA) Insulation and Sheath Control Flexible Cable
(ZR192-) KFF22
Fluorine 46 (Imported PFA) insulated and sheathed steel tape armored control cable
(ZR192-) KFFRP
Fluorine 46 (Imported PFA) insulated and sheathed copper wire braided shielded control flexible cable
(ZR192-) KFFP1
Fluorine 46 (Imported PFA) insulated and sheathed tinned copper braided shielded control flexible cable
(ZR192-)KFFP2
Fluorine 46 (Imported PFA) insulated and sheathed copper tape wrapped shielded control cable
(ZR192-)KFFRP2
Fluorine 46 (Imported PFA) insulated and sheathed copper tape wrapped shielded control flexible cable
(ZR192-)KFV
Fluorine 46 (imported PFA) insulated PVC sheathed control cable
(ZR192-) KFVR
Fluorine 46 (imported PFA) insulated PVC sheathed control flexible cable
(ZR192-)KFVP
Fluorine 46 (Imported PFA) insulated copper wire braided screened PVC sheathed control cable
(ZR192-)KFVRP
Fluorine 46 (Imported PFA) insulated copper wire braided screened PVC sheathed control flexible cable
(ZR192-)KFVP2
Fluorine 46 (Imported PFA) insulated copper tape wrapped shielded PVC sheathed control cable
(ZR192-)KFV22
Fluorine 46 (imported PFA) insulated PVC outer sheathed steel tape armored control cable
(ZR192-)KFRV22
Fluorine 46 (imported PFA) insulated PVC outer sheathed steel tape armored control flexible cable
(ZR192-)KFVP2-22
Fluorine 46 (Imported PFA) insulated copper tape wrapped shielded steel tape armored PVC sheathed control cable
(ZR192-)KFGR(YGC-KF46R)
Fluorine 46 (imported PFA) insulated silicone rubber sheathed control flexible cable
(ZR192-)KFGPR(YGC-KF46RP)
Fluorine 46 (imported PFA) insulated silicon rubber sheathed copper wire braided shield control flexible cable
If you need to customize high temperature cable, if you have any questions about product selection, please contact us.
