High temperature Control Cable with  Fluoroplastics Insulation is used as connection cable for electric appliances & instruments and transmission cable for automatic control system in controlling and supervising loop of A.C. rated voltage of 450/750V or lower. It has good feature of oil resistance, abrasion resistance, acid & alkali resistance, various chemical reagent(except chloroform) and corrosive gas resistance, aging resistance and bad weather resistance etc. It is used as connection cable for electric appliances & instruments and transmission cable for automatic control system under bad environment of extreme temperature mainly in the field of metallurgy,power, chemical and petroleum enterprises. F46 or Teflon insulation material is adopted by control cable with fluoroplastics insulation & sheath and high temperature resistance. It has better heat resistant degree compared with common control cable.

Performance for Usage

A.C. rated voltage U0/U: 450/750V
2: Long-term working temperature of cable conductor:Temperature of fl uoroplastic outer protecting layer is 200℃/260℃.
Temperature of PVC outer protecting layer is 105℃.Temperature of silicon rubber outer protecting layer is 180℃.
Temperature for installing cable is no lower than:
0℃ for cable with PVC sheath
-20 ℃ for cable with silicon rubber sheath
-20 ℃ for cable with fl uoroplastic sheath
Bending radius allowed by cable:

It is no less than 6 times that of cable OD for cable with inarmored layer

It is no less than 12 times that of cable OD for cable with armored layer or copper tape shielding

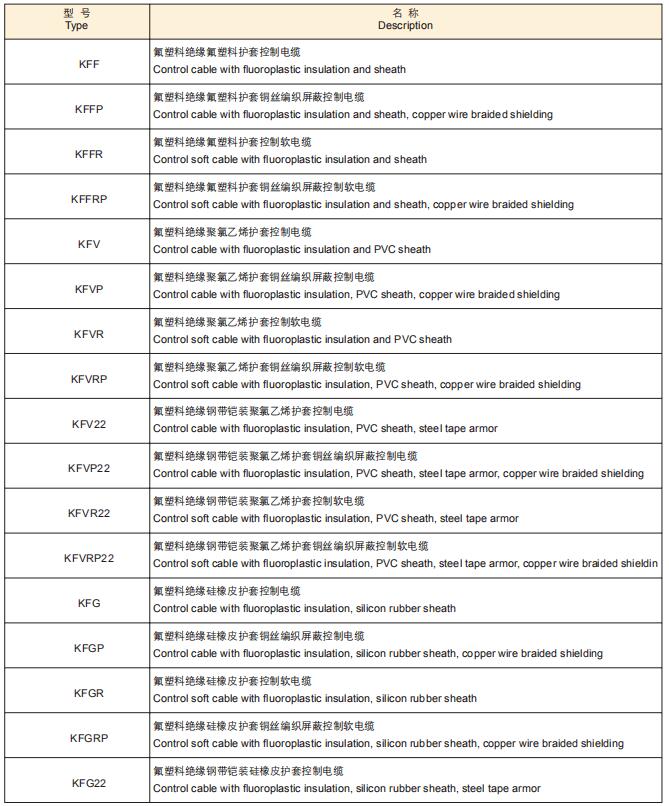

Basic Type and Description

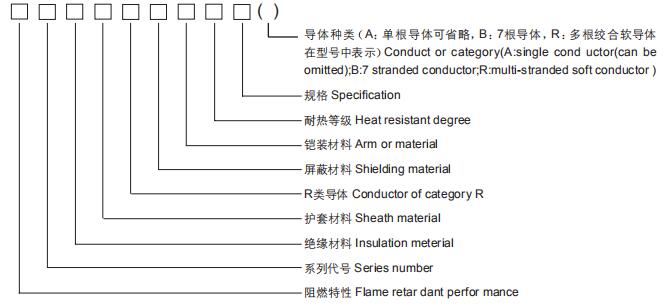

Type-naming Indication

Codes Meaning

Main Technical Indices

We can customize the high temperature fluoroplastic cable that meets your requirements according to your requirements. Welcome to communicate and welcome you to visit our company.
