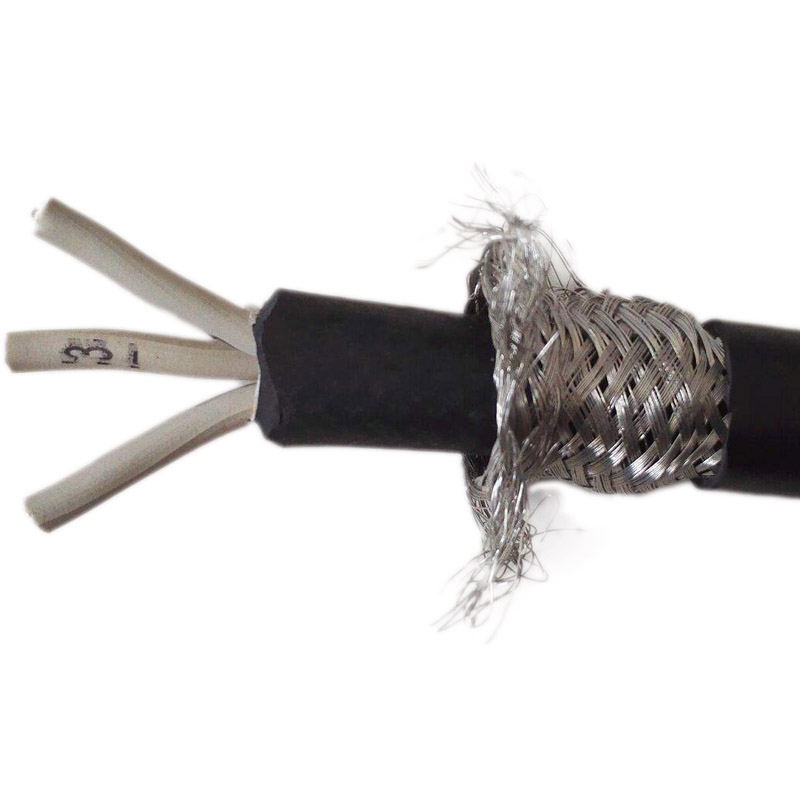

Marine power cable CJPJP95

Marine power cable CJPJP95
Marine power cable
Product description: Marine power cable CJPJP95 is designed and manufactured according to IEC 60092-350, IEC 60092-353, IEC 60092-354, IEC 60331, IEC 60332-1-2, IEC 60332-3-22, IEC 60754-1 / 2, IEC 61034
INQUIRY

Marine power cable CJPJP95 is designed and manufactured according to IEC 60092-350, IEC 60092-353, IEC 60092-354, IEC 60331, IEC 60332-1-2, IEC 60332-3-22, IEC 60754-1 / 2, IEC 61034.It is suitable for all kinds of river and sea ships, offshore oil platforms and other water buildings to transmit electric energy.

Marine power cable CJPJP95 Type and description

Model (example) Type（Example）	Name Description
CJPJP95/SC 0.6/1kV CJPFP96/SC 0.6/1kV	Rated voltage 0.6/1kv cross linked polyethylene insulated thermosetting (thermoplastic) polyolefin inner sheath steel wire braided armored thermosetting (thermoplastic) polyolefin outer sheath marine power cable type SC
CJPJP85/NSC 1.8/3kV CJPFP86/NSC 1.8/3kV	Rated voltage 1.8/3kv cross linked polyethylene insulated thermosetting (thermoplastic) polyolefin inner sheath tinned copper wire braided armored thermoplastic thermosetting (thermoplastic) outer sheath halogen-free low smoke flame retardant fire resistant marine power cable type SC
CVV92/SA 0.6/1kV	Rated voltage 0.6/1kv PVC insulated PVC inner sheathed steel wire braided armored PVC outer sheathed marine power cable SA type
CYJ95/SC 8.7/15kV	Rated voltage 8.7/15kv cross linked polyethylene insulated steel wire braided armored thermosetting (thermoplastic) polyolefin outer sheath marine power cable type SC

Marine power cable structure

CJPJP95/SC CJPFP96/SC 0.6/1kV

	1, conductor
	2、XLPE insulation
	3、Tape
	4、PO inner sheath
	5、Steel wire braid
	6、PO outer sheath

CJPJP85/NSC CJPFP86/NSC 1.8/3kV

	1, conductor
	2、Refractory layer
	3、XLPE insulation
	4、Tape
	5、PO inner sheath
	6、Tinned copper wire braid
	7、PO outer sheath

CYJ95/SC CYJ96/SC 8.7/15kV

	1, conductor
	2、Inner shield
	3、XLPE insulation
	4、Outer shield
	5、Copper tape shield
	6、Tape
	7、PO inner sheath
	8、Steel wire braid
	9、PO outer sheath
