  • Product description: Multi-core electric heating sampling composite tube is an important part of the environmental protection CEMS monitoring system. It is composed of multiple corrosion-resistant high-performance tetrafl
  • INQUIRY

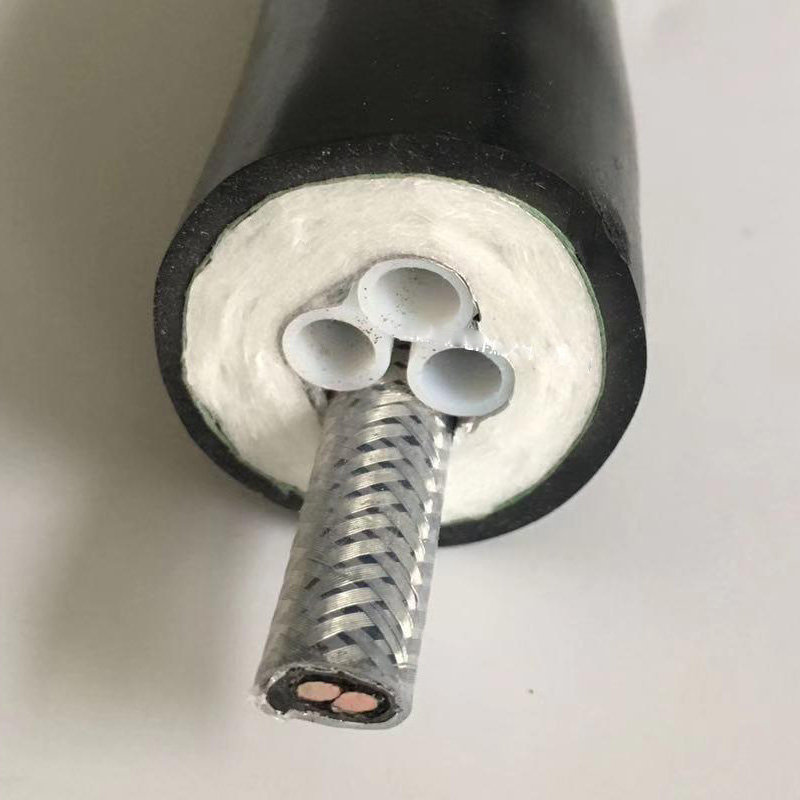

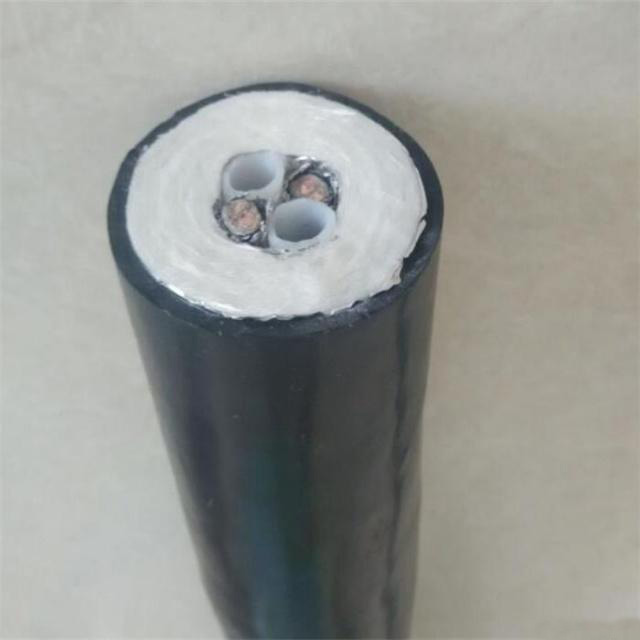

Multi-core electric heating sampling composite tube is an important part of the environmental protection CEMS monitoring system. It is composed of multiple corrosion-resistant high-performance tetrafluoroethylene pipes supplemented by high-temperature constant-power electric heating belts or self-limiting temperature electric heating belts and compensation cables. The inner core, plus an insulation layer of imported raw materials, is finally laminated with a polyethylene (PE) or polyvinyl chloride (PVC) protective jacket.
heat tracing sampling composite pipe
constant power electric heating cable adopts platinum resistance or thermocouple temperature probe to control the temperature. The automatic temperature limit function of the Self Regulating Heating Cable can ensure that a certain temperature is maintained in the sampling tube, so as to ensure that the collected samples are consistent with the initial value as much as possible, and finally ensure The CEMS environmental monitoring system continuously and correctly collects sample gas. According to the actual conditions such as the composition and temperature of the sample gas, the sampling tube in the sampling composite tube can be made of different materials, such as PFA, Teflon (tetrafluoroethylene and perfluoroalkyl ether copolymer), FEP (tetrafluoroethylene and Hexafluoropropylene copolymer), PVDF (polyvinylidene fluoride) and so on. Suitable heating cables (constant power heating cables, self-control heating heating cables) can be used according to the requirements of different environmental temperatures. In addition, compensation wires, power cables, blowback tubes and sampling tubes can be added according to user requirements.
Multi-core electric heating sampling composite tube
Multi-core electric heating sampling composite tube Basic parameters:
1. Single-core pipeline: material PFA, FEP, PTFE; outer diameter Φ6mm, Φ8mm, Φ10mm, single-core and double-core optional.
2. Electric heating cable: constant power, self-limiting temperature.
3. Heating temperature of sampling gas: 80°C; 120°C; 150°C; 180°C.
4. The outer diameter of the heating pipeline: OD38±2mm; OD42±2mm.
5. Black PVC/CVC anti-wear layer.
6. Power: 40~60W/M.
7. Power supply: 220VAC 50Hz; 110v.
