Thermocouple compensation cable

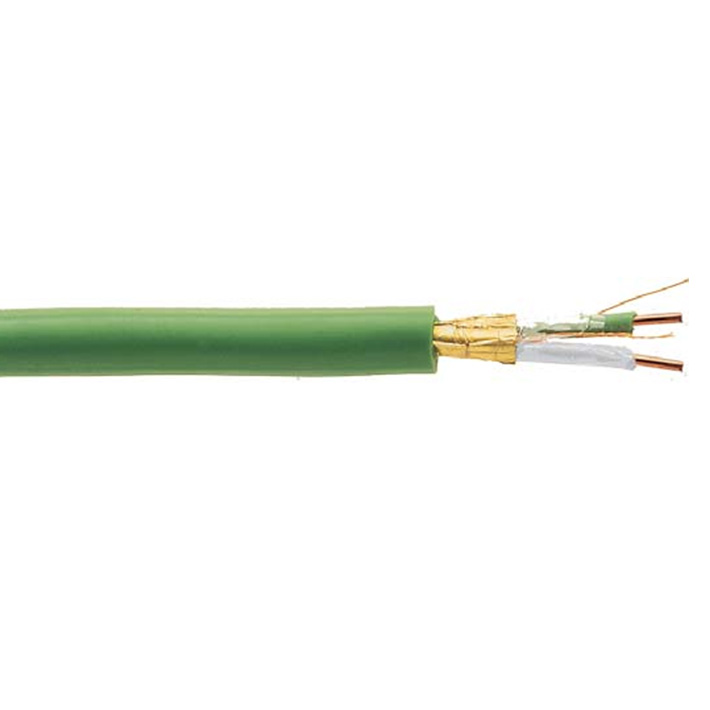

PVC insulated alu foil Screen bare copper earth wire Compensating cable

Compensating cable
pvc Compensating cable
Product description: In the production process, due to the harsh on-site environment, PVC insulated alu foil Screen bare copper earth wire Compensating cable sometimes needs to pass through the high temperature zone or el
INQUIRY

In the production process, due to the harsh on-site environment, PVC insulated alu foil Screen bare copper earth wire Compensating cable sometimes needs to pass through the high temperature zone or electromagnetic interference zone. This kind of compensation wire needs to be used. When aluminum foil is used for shielding, the aluminum foil composite tape should be closely attached to the insulating layer and not easy to loose Take off; the thickness of the shielding layer shall not be greater than 0.8mm.

PVC insulated alu foil Screen Compensating cable Construction:
Insulation: PVC, TI2

acc. to EN 50363-3 + VDE 0207-363-3

Stranding: 2 cores together

Wrapping: PETP foil,

bare copper earth wire 0,5 mm ø

Screen: alu foil

Sheath material: PVC, TM2

acc. to EN 50363-4-1 + VDE 0207-363-4-1

Shape: round

Conductor

construction: strand resp. wire

Technical data:

Min. bending radius: 12 x d

Radiation resistance: 8 x 10 7 cJ/kg

Temperature range fixed laying: -40/+70 °C

of insulation: flexible application: +5/+70 °C

Insulation resistance: > 1MΩ x km

Fire performance: flame retardant and self-extinguishing

acc. to IEC 60332-1-2 + VDE 0482-332-1-2

PVC insulated alu foil Screen bare copper earth wire Compensating cable is a special signal transmission wire for thermocouple and display/control instrument system, and has the function of automatic temperature compensation.
