connection cable between hot runner control and hot runner system Hybrid thermocouple cable JX
Hybrid thermocouple cable JX
thermocouple cable JX
Product description: connection cable between hot runner control and hot runner system Hybrid thermocouple cable JX solution between hot runner control unit and hot runner system combines two cable features.

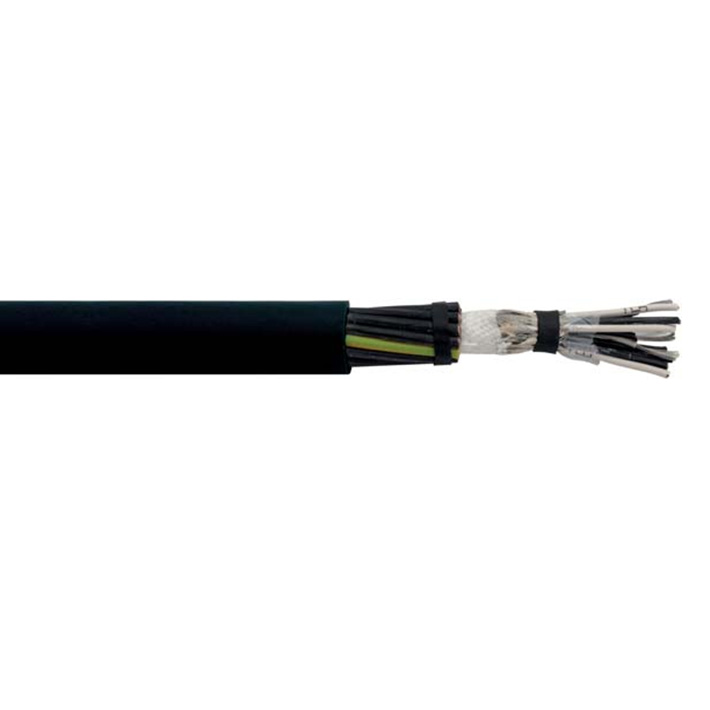

connection cable between hot runner control and hot runner system Hybrid thermocouple cable JX solution between hot runner control unit and hot runner system combines two cable features. Cable cores combined with a screened extension cable type JX for temperature control replace the cabling with two different cables. connection cable between hot runner control and hot runner system Hybrid thermocouple cable JX Construction: Conductor: thermo strands Fe-CuNi for type J,bare copper strands acc. to IEC 60228 class 5 Insulation: PVC Colour code: black and white acc. to IEC 60584 type JX,black with white numbers 1 to -4, -8, -12 ,-16 and a green-yellow earth wire (control cores) Wrapping: foil Screen: twisted JX element braided with tinned copper wires (optical coverage approx. 80%) Wrapping: banding Stranding: together Sheath material: PVC Sheath colour: black connection cable between hot runner control and hot runner system Hybrid thermocouple cable JX Technical data: Nominal voltage: 300/500 V control cores - (1,5 mm²) Testing voltage: 2000 V - control cores - (1,5 mm²) / 600 V (0,5 mm²) Thermoelectric voltage: acc. to IEC 60584 - (0,5 mm²) Min. bending radius fixed laying: 5 x d flexible application: 12 x d Temperature range fixed laying: -25/+70°C flexible application: +5/+70°C connection cable between hot runner control and hot runner system Hybrid thermocouple cable JX Outstanding features: high flexibility wear resistant
