  • Product description: Shielded flat elevator cable TVVBP suitable for installation in elevator equipment, as equipment connection cables, and can also be used for elevators and other lifting and similar lifting systems. Oi
  • INQUIRY

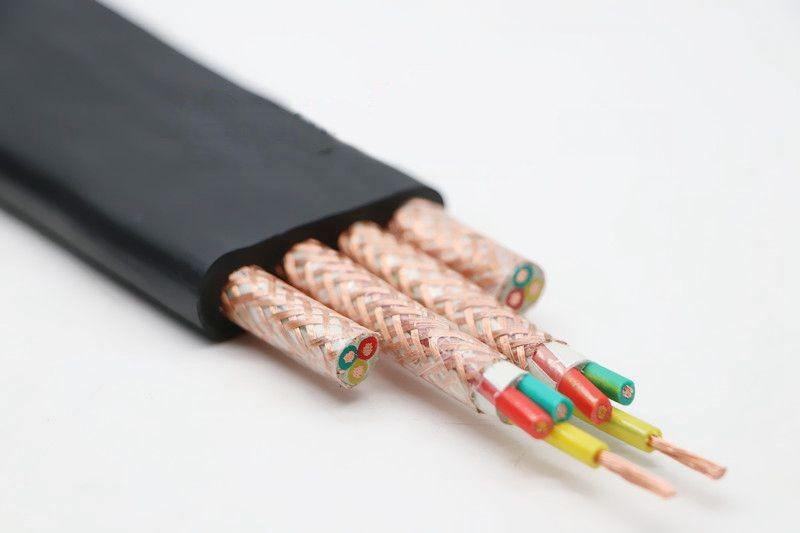

Shielded flat elevator cable TVVBP suitable for installation in elevator equipment, as equipment connection cables, and can also be used for elevators and other lifting and similar lifting systems. Oil resistance, water resistance, corrosion resistance, high and low temperature resistance, high mechanical strength, excellent chemical stability and dielectric properties, good product performance, and safe use.

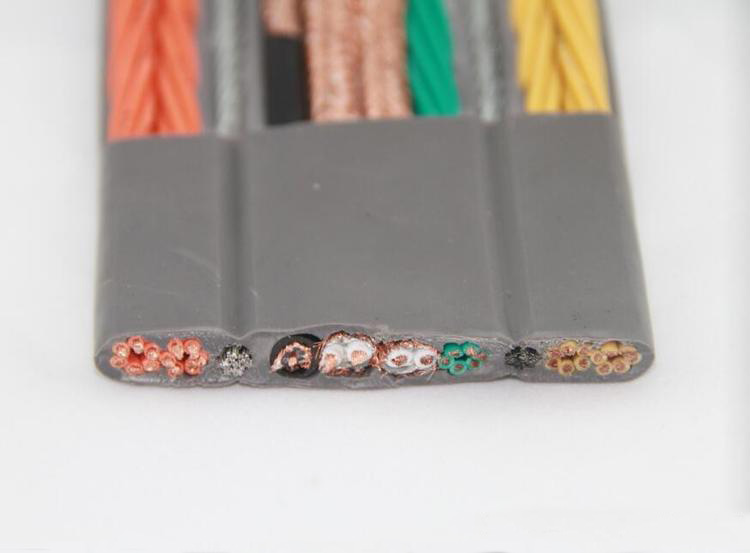

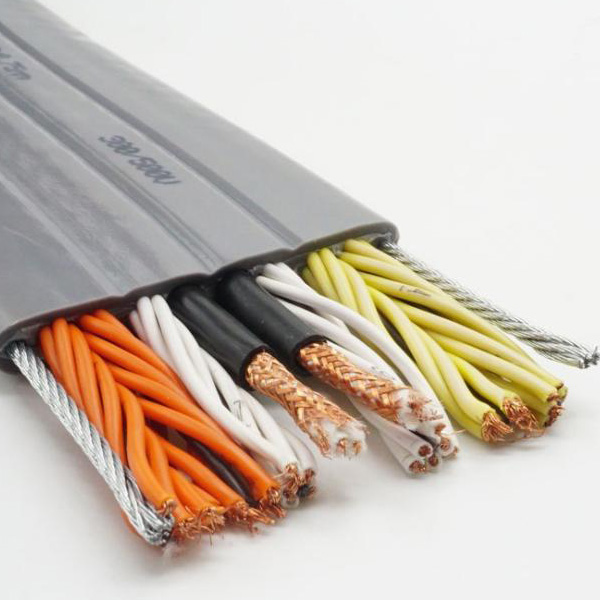

Shielded flat elevator cable TVVBP structure
1,Conductor: Multiple strands of ultra-fine finely stranded oxygen-free copper wire, in line with VDE0295 class 5.
2,Insulation: special mixed PVC insulation material.
3,Color: Comply with GB5023.6 (yellow, white, orange, light green, pink) digital number (no yellow and green grounding wire)
4,Shielding layer: aluminum foil wrapped around the package and copper mesh braided shield.
5,Video transmission line: high-strength copper-clad steel conductor, low-interference special coaxial video line (optional)
6,Reinforcement: high-strength galvanized aviation steel wire (can be selected according to requirements).Flat elevator cable TVVBG with steel wire
7,Sheath: special cold-resistant PVC sheath, gray (RAL7001) or black (RAL9005)
Such products have the following models:
TVV---copper core PVC insulation, PVC sheath, round elevator cable.
TVVP---copper core PVC insulation, PVC sheath, copper mesh screen, round elevator cable.
TVVG---copper core PVC insulation, PVC sheath, steel wire reinforced core, round elevator cable.
TVVPG----Copper core PVC insulation, PVC sheath, copper mesh shield, steel wire reinforced core, round elevator cable.
TVVB---copper core PVC insulation, PVC sheath, flat elevator cable.
TVVBP---copper core PVC insulation, PVC sheath, copper mesh screen, flat elevator cable.
TVVBG---copper core PVC insulation, PVC sheath, steel wire reinforced core, flat elevator cable.
TVVBPG---copper core PVC insulation, PVC sheath, copper mesh shield, steel wire reinforced core, flat elevator cable.
Shielded flat elevator cable TVVBP use Copper core PVC insulated, PVC sheathed flat/round elevator cable. It is suitable for use in elevators and lifting machinery equipment with AC rated voltage of 300/500V and below, as power supply power connection line. It adopts a new type of flexible elevator cable special outer sheath, which can remain soft at a low temperature of -20℃; built-in high-strength steel wire strengthens the tension it can withstand, and extends the cable life.

model

conductor

insulation

External quilt

Maximum conductor

DC resistance

(Ω/km,

20)

Minimum absolute

Edge resistance

(MΩ.km,

70)

Compressive strength

(ACV,5min)

Number of cores and nominal section (n × mm2)

thickness

(mm)

external diameter

(mm)

TVVBG

3×2.5

0.8

7.0×21.6

7.98

0.009

Insulation: U / uo: 300 / 500V, 0.6mm and below: 1500V, U / U0: 450 / 750V, greater than 0.6mm: 2500V

Finished product: U / U0: 300 / 500V, experimental voltage is 2500V

The experimental voltage is 2500V

6×0.75

0.6

5.1×23.1

26

0.011

12×0.75

0.6

5.1×44.2

26

0.011

18×0.75

0.6

5.1×54

26

0.011

24×0.75

0.6

5.1×68

26

0.011

12×1.0

0.6

5.4×45.6

19.5

0.010

18×1.0

0.6

5.4×55

19.5

0.010

The cores of the above products are placed in parallel

18×0.75

0.4

9.0×36.7

26

0.011

24×0.75

0.4

9.0×43

26

0.011

30×0.75

0.4

9.0×47.7

26

0.011

36×0.75

0.4

9.0×53.6

26

0.011

40×0.75

0.4

9.0×60

26

0.011

42×0.75

0.4

9.0×60

26

0.011

48×0.75

0.4

9.0×66.3

26

0.011

60×0.75

0.4

9.0×80.4

26

0.011

16×1.0

0.6

8.6×40

19.5

0.010

18×1.0

0.6

10.5×38.5

19.5

0.010

24×1.0

0.6

10.5×46

19.5

0.010

The core wires of the above products are laid in groups
