  • Product description: elevator flat cable ​Mainly used in elevator control systems. The elevator cable adopts a special structure design and has a long service life.
elevator flat cable Mainly used in elevator control systems. The elevator cable adopts a special structure design and has a long service life. It can provide overall electrical control under the condition of a long suspension length and can withstand greater mechanical shock stress. The product should use steel wire to carry the cable core, which can be used for long-distance suspension applications.

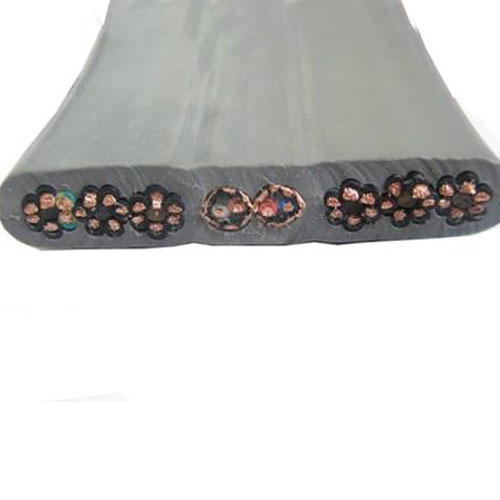

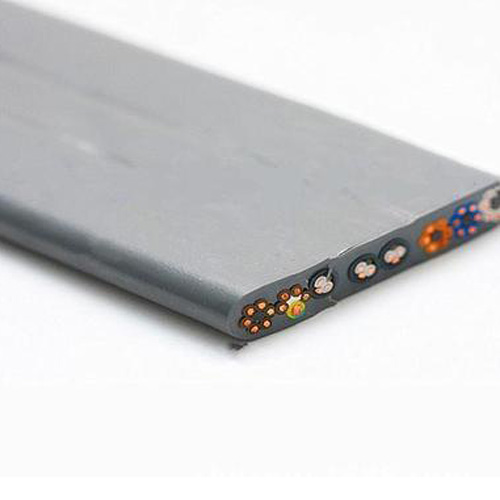

elevator flat cable structure
Conductor: finely twisted oxygen-free bare copper wire, in line with VDE0295CLASS 5 standard
Insulation: PVC insulation
Core wire color: digital number
Line core arrangement: one word arrangement or plum blossom arrangement
Steel wire: two high-strength galvanized aviation steel wires (optional)
Sheath: 70℃ Nitrile Sheath Black (RAL9005) Grey (RAL7001)
Applicable environment: -10℃~70℃
Applicable products: suitable for installation in elevator equipment, as equipment connection line, can also be used for elevators and other lifting and similar lifting systems.
elevator flat cable Use characteristics:
1. The maximum temperature of the conductor during normal use is 70°C, and the product is usually not suitable for use below 0°C. When the temperature is lower than 0°C, it can be negotiated between the buyer and the manufacturer, and designed and manufactured according to the customer's technical requirements and use conditions.
2. TVVB series cables are intended to be used for elevators and elevators whose free suspension length does not exceed 80m and moving speed does not exceed about 4m/s. When the cable usage exceeds the above limit, it can be resolved through negotiation between the buyer and the manufacturer. Load-bearing components (such as steel wire ropes). The elevator cables with additional load-bearing parts are intended to be installed in elevators and elevators with a free suspension length greater than 80m and a moving speed not exceeding 10m/s.
3. The insulated cores of the cable are numbered and arranged in parallel. The cable structure is soft and easy to lay and install. The same specifications and sizes can be designed and improved according to the needs of customers.
4. The rated voltage of the elevator cable is 300/500V for the nominal cross-section of the core wire 1 mm2 and below, and 450/750 V for the core wire cross-section above 1 mm2.
Flat elevator cable is a universal product with a wide range of market demand. This product has high quality, long service life and affordable price, and has been deeply trusted by customers.
