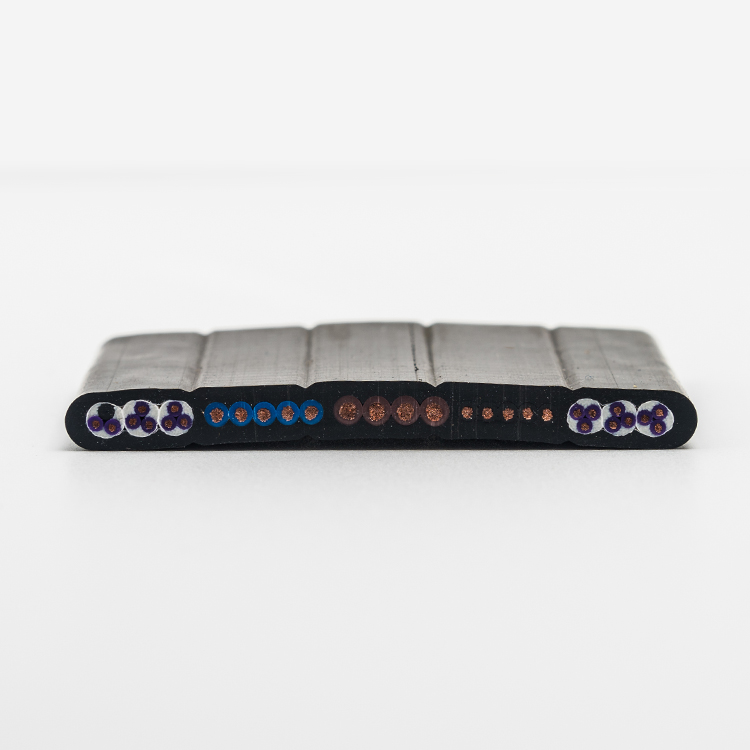

copper wire flat elevator video and audio out monitoring cable
copper wire flat
Product description: copper wire flat elevator video and audio out monitoring cable is suitable for vertical folding wiring and horizontal centralized wiring of multifunctional lamp hangers in large-scale venues such as T
copper wire flat elevator video and audio out monitoring cable is suitable for vertical folding wiring and horizontal centralized wiring of multifunctional lamp hangers in large-scale venues such as TV studios, theaters, stadiums, etc. (1) The conductive wire core adopts a soft structure to ensure that the cable is flexible. (2) The butyl polymer is used as the insulation and protection layer material to improve the softness, corrosion resistance and cold resistance of the cable. (3) Separation of insulated wire cores provides convenience for laying and installation. (4) Wire ropes or other load-bearing components can be added on both sides of the cable core according to customer needs. copper wire flat elevator video and audio out monitoring cable Main performance conforms to (Q / ZB 01-2005) (1) Rated working voltage of the cable: AC 450 / 750V and below. (2) The ambient temperature of the cable: -40 ~ 180 ℃. (3) Minimum bending radius of cable: 10 times the thickness of the small side of the cable. (4) AC between the finished cable cores: 50Hz, 2.5kV test voltage does not breakdown for 5min. (5) Minimum tensile strength of insulation and sheath: 10N / mm2, minimum elongation at break of 150%, no crack at low temperature winding at -40 ℃, and minimum elongation at -40 ℃ at low temperature of 20% copper wire flat elevator video and audio out monitoring cable is a flat wire formed by combining many wires together. This kind of flat ribbon cable is low in cost, light in weight, strong in toughness, and easy to use in both large equipment and small equipment.AnHui TianKang Group Flat cable has the characteristics of heat resistance, cold resistance, acid and alkali resistance, and the ambient temperature is -40 ~ 180 ℃.
