Flat ribbon cable

  • flat elevator CCTV camera lift cable
flat elevator CCTV camera lift cable

flat elevator CCTV camera lift cable

  • flat elevator CCTV cable
  • Product description: flat elevator CCTV camera lift cable uses high-density polyethylene insulation and color-coded cables. Each cable consists of four pairs of twisted 24AWG multi-strand copper wires. It adopts double-la
  • INQUIRY
flat elevator CCTV camera lift cable uses high-density polyethylene insulation and color-coded cables. Each cable consists of four pairs of twisted 24AWG multi-strand copper wires. It adopts double-layer shielding of aluminum foil and braided copper mesh, and ultra-class five RJ45 connectors, which meets T-568A ultra-class five transmission standards. Comes in a variety of colors. The power cables are 2x0.75, 2x1.0, 2x1.5, etc. The audio cables are SYV75-3, SYV75-5.
flat elevator CCTV camera lift cable, elevator video plus audio plus power combination cable can be hung together with the elevator control cable, and the elevator cable using steel wire can also be used independently (while bearing mechanical stress,flat cable can be used for long-distance signal transmission, it has better shielding and anti-interference Effect, suitable for occasions such as elevator installation.

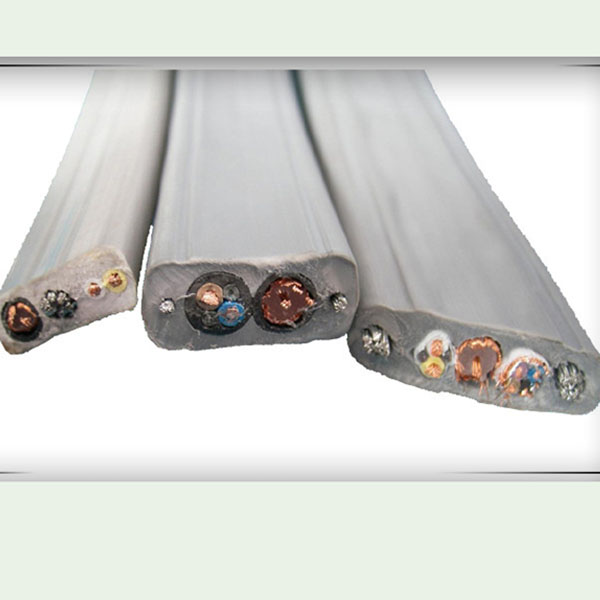

flat elevator CCTV camera lift cable structure

Network cable conductor: 24AWG stranded oxygen-free copper wire

Network cable insulation: HDPE

Insulation logo: orange, white / orange, blue, white / blue, green, white / green, brown, white / brown

Network cable shielding: aluminum foil, copper wire braided mesh

Wire conductor: Multi-strand fine-annealed oxygen-free copper wire

Wire insulation: PVC polyvinyl chloride

Tensile steel wire: high strength galvanized steel wire

Sheath material: special material for elevator cable
