Diesel Locomotive Cable

dlo-262.6 dlo-313.1 dlo-646.4 Diesel Locomotive Cable

Diesel Locomotive Cable
DLO Cable
Product description: dlo-262.6 dlo-313.1 dlo-646.4 Diesel Locomotive Cable can be thought of as a very heavy duty welding cable due to the double jacket (or insulation and jacket) construction and will at times be used as
INQUIRY

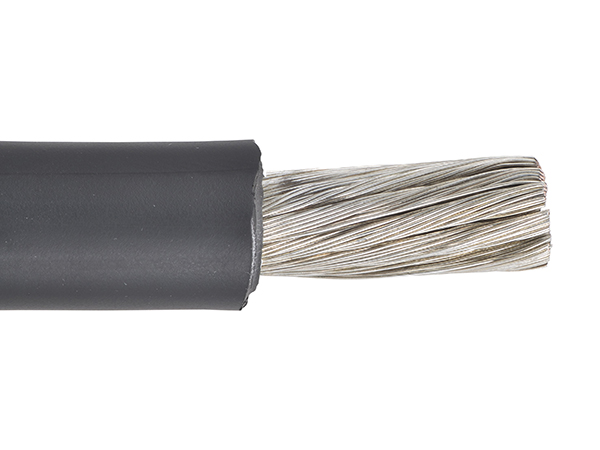

dlo-262.6 dlo-313.1 dlo-646.4 Diesel Locomotive Cable can be thought of as a very heavy duty welding cable due to the double jacket (or insulation and jacket) construction and will at times be used as welding cable especially for the high amperage systems. DLO cable is used to transmit the power from the generator to the electric drive motor.

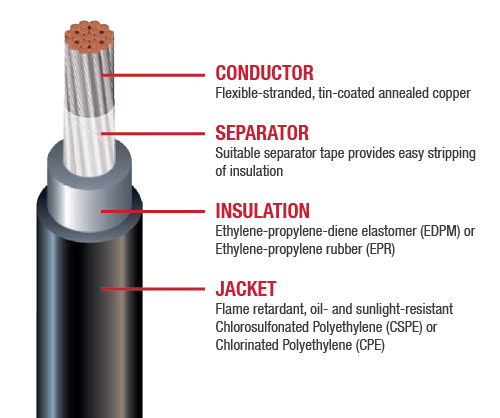

dlo-262.6 dlo-313.1 dlo-646.4 Diesel Locomotive Cable Construction:

Conductor:
• 14 AWG (2.08 mm) thru 1111.1 kcmil (562 mm)
Class I fully annealed flexible stranded tin coated copper per AAR 589
Insulation:
• Flame-retardant, lead-free cross-linked Ethylene Propylene (EP) with separator tape over the conductor to facilitate stripping
Jacket:
• Black, flame-retardant, sunlight-, ozoneand oil-resistant, lead-free Cross-linked Chlorinated Polyethylene (XL-CPE)
*Applicable for sizes 1/0 AWG and larger only
Options:
• Fully annealed, flexible bare copper stranding per AAR 589
• Other jacket colors available upon request

dlo-262.6 dlo-313.1 dlo-646.4 Diesel Locomotive Cable parameter

1X Part #	DLO Sizes	Strands	Insul. (in)	Jacket (in)	O.D. (in)	LBS/MFT	Amps
DLO-14	14	19/27	0.045	0.015	0.218	30	35
DLO-12	12	19/25	0.045	0.015	0.240	46	40
DLO-10	10	27/24	0.045	0.015	0.266	67	55
DLO-8	8	37/.0211	0.065	0.030	0.3363	105	80
DLO-6	6	61/24	0.065	0.030	0.3807	146	105
DLO-4	4	105/24	0.065	0.030	0.4503	205	140
DLO-2	2	161/24	0.065	0.045	0.5020	293	190
DLO-1	1	210/24	0.085	0.045	0.6500	392	220
DLO-1/0	1/0	266/24	0.085	0.045	0.6900	525	260
DLO-2/0	2/0	342/24	0.085	0.045	0.7300	660	300
DLO-3/0	3/0	418/24	0.085	0.045	0.8100	760	350
DLO-4/0	4/0	551/24	0.080	0.045	0.8700	930	405
DLO-262.6	262.6	646/24	0.100	0.065	0.9200	1130	467
DLO-313.1	313.1	779/24	0.100	0.065	0.9680	1400	518
DLO-373.7	373.7	931/24	0.100	0.065	1.0650	1545	588
DLO-444.4	444.4	1102/24	0.100	0.065	1.1320	1820	649
DLO-535.3	535.3	1330/24	0.125	0.065	1.2400	2023	725
DLO-646.4	646.4	1590/24	0.125	0.065	1.3590	2560	814
DLO-777.7	777.7	1924/24	0.125	0.065	1.3820	3050	900
DLO-929.2	929.2	2299/24	0.120	0.065	1.6700	3123	1014
DLO-1111	1111.0	2745/24	0.140	0.065	1.8400	4354	1115

dlo-262.6 dlo-313.1 dlo-646.4 Diesel Locomotive Cable is used in a variety of applications by several industries. The extra flexible tinned copper conductor has a suitable separator on sizes 4 AWG and larger. Insulated and jacketed with a crosslinked EPR thermosetting insulation and jacket, DLO cable meets the requirements of ICEA S-68-516 providing toughness along with good flexibility.

dlo-262.6 dlo-313.1 dlo-646.4 Diesel Locomotive Cable
