BFOU Cable

  • 150/250V BFOU(c) S4/S8 Marine Cable
150/250V BFOU(c) S4/S8 Marine Cable

150/250V BFOU(c) S4/S8 Marine Cable

  • 150/250V BFOU(c) S4/S8 Marine Cable
  • Marine Cable
  • Product description: 150/250V BFOU(c) S4/S8 Marine Cable ​Halogen free, low smoke, fire resistant collective screened instrumentation and telecommunication cable for fixed installation in signal and communication applicat
  • INQUIRY

150/250V BFOU(c) S4/S8 Marine Cable Halogen free, low smoke, fire resistant collective screened instrumentation and telecommunication cable for fixed installation in signal and communication applications. Suitable for installation in all marine environments such as muddy, wet, dry and oily conditions.

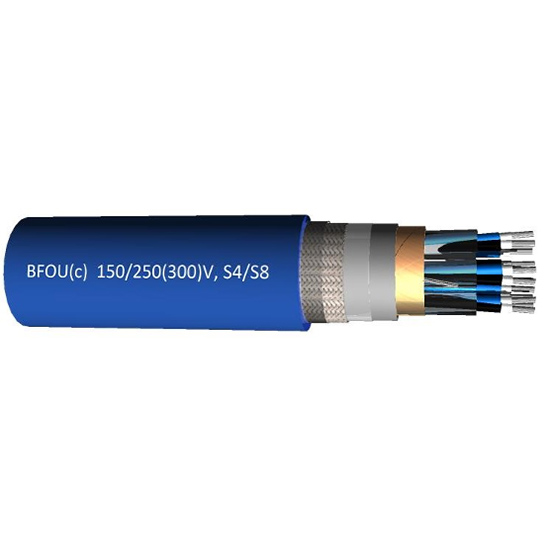

150/250V BFOU(c) S4/S8 Marine Cable Construction
Conductor
Circular tinned stranded Cu, class 2
Insulation
Fire resistant Mica tape helically applied over the conductors
Ethylene propylene rubber (EPR)
Filling sheath
Flame retardant and halogen free compound
Screen
Collective screen: Pairs/triples are laid-up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are identified by printed numbers on insulated conductors.
Armour: Tinned annealed copper wire braid
Outer sheath
Flame retardant, halogen free and mud resistant thermoset compound acc. to SHF MUD, grey (if intrinsically safe the color is blue)
150/250V BFOU(c) S4/S8 Marine Cable Fire resistant offshore instrumentation 250 V collectively screened cables. These fire resistant cable is specially designed to transmit data in the presence of fire. In case of fire, they do not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. They are also heavy duty, mud resistant cables for Offshore applications. Oil resistant, halogen free, flame and fire non propagators. Based on IEC 60092-376 and NEK TS 606. Suitable for fixed installations in vessels and oil rigs, assuring the highest level of safety, security and reliability.BFOU(i) S3/S7 marine Cable
