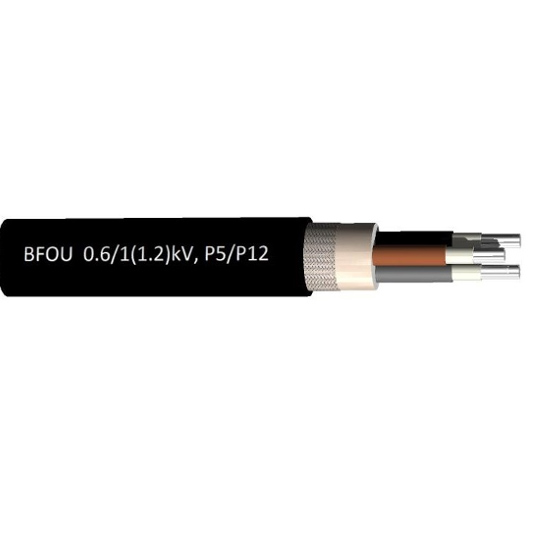

BFOU P5/P12 marine Power cable is suitable for use in all marine environment conditions, including muddy, dry, wet, or oily locations.BFOU (NEK 606 P5/P12) low smoke, zero halogen power cable to perform uninterrupted in various electromechanical, electric distribution, lighting, or critical system fixed installations, even in direct contact with fire. Its flame and fire resistant features and halogen free design will protect equipment and help save lives.
BFOU P5/P12 marine Power cable Description
Conductors: Tinned annealed stranded copper
Core Identification: Single core: off-white 2 core: off-white & black, 3 core: off-white, black & red, 4 core: off-white, black, red & blue.
Including green / yellow core options
Insulation: MGT (Mica glass tape), halogen free EPR (Ethylene Propylene Rubber)
Screen: TCWB (Tinned copper wire braid)
Sheath/Jacket: Type: SHF, thermoset dual compound, halogen free and mud resistant
Sheath Colours: Black
Voltage: 600/1000v
Operating Temperature:Maximum 90°C,
Cold Bend/Impact: CSA 22.2 NO. 0.3 (-40°C)
BFOU P5/P12 marine Power cable used in need to comply with certain (construction) requirements. The BFOU 0.6-1 1.2kV P5-P12 meets these requirements. We will give you two examples. Empty spaces between the cores are not allowed as this makes the transportation of flammable liquids and gasses possible. Therefore, the bedding or the inner sheath of the cable needs to be pressed. Another requirement is that the outer sheath of the cable must be made of an elastomer, a thermoplastic or a thermoset material.
