NEK606 BFOU Marine cable

NEK606 BFOU Marine cable
BFOU Marine cable
Product description: NEK606 BFOU Marine cable Fixed installation for power, control and lighting in both EX (Zone 0, 1 & 2)- and safe areas, emergency and critical systems where requirement for fire resistance exists.
INQUIRY

NEK606 BFOU Marine cable Fixed installation for power, control and lighting in both EX (Zone 0, 1 & 2)- and safe areas, emergency and critical systems where requirement for fire resistance exists. For installation in areas exposed to MUD and drilling/cleaning fluids.Marine cable Meets the MUD resistance requirement in NEK TS 606:2009.

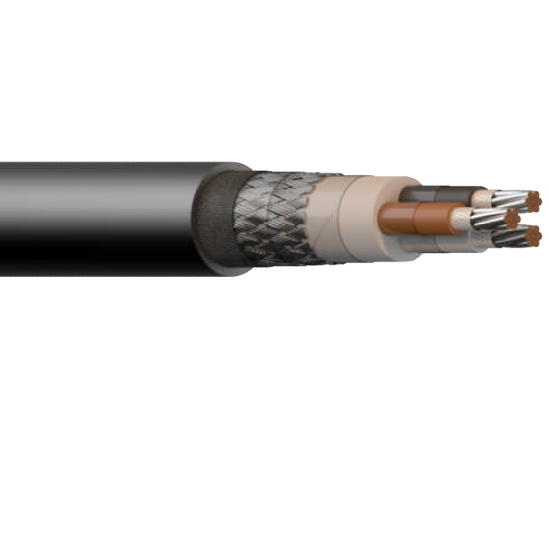

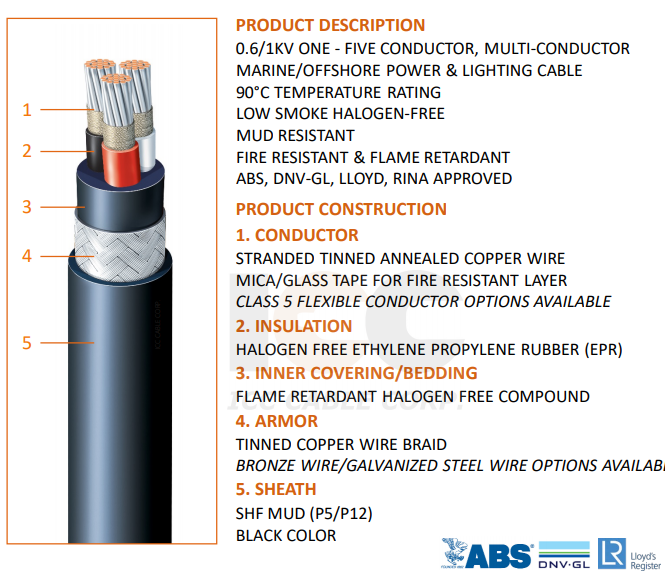

NEK606 BFOU Marine cable Construction

	Code Letter
Conductor		Tinned annealed stranded circular copper (STCC), IEC 60228 class 2
Insulation	B	Mica-tape + EP-rubber, IEC 60092-360 (EPR)
Lay up / Shielding		Cores laid up in concentric layers
Inner covering	F	Flame retardant and halogen-free thermoplastic compound
Tape over inner covering		PET tape
Armour/screen	O	Tinned annealed copper wire braid
Tape over armour/screen		PET tape
Outer sheath	U	Flame retardant, halogen-free and mud resistant thermoset compound, SHF2 (IEC 60092-360)
Marking text		E.g. "meter" "year" DRAKA 01 BFOU 0,6/1kV P5/P12 3 x 25/16 mm2 FLEX - FLAME IEC 60331-1) or IEC 60331-2) IEC 60331-21**) IEC 60332-3-22
Outer sheath colour		Black

NEK606 BFOU Marine cable standards

IEC 60092-353: For offshore power and control cables 0.6/1kV.
IEC 60092-350: For power, control, and instrumentation cables for electrical installations on ships and offshore facilities.
IEC 60331: Test for power cables against the temperature of at least 830 C.
IEC 60332-1-2: Tests for power cables under fire conditions to check resistance against vertical flame propagation for a single insulated wire.
IEC 60032-3-22: For offshore cable’s performance against high temperature.
IEC 60754-1/2: Tests for the toxic gases produced during the combustion of these cables.
IEC 61034: Tests for the smoke density of burning cables.
NEK TS 606: Mud resistant and halogen-free
