NSHTÖU Cable

0.6/1kV (N)SHTÖU-O/J Cable

SHTÖU-O/J Cable
Product description: 0.6/1kV (N)SHTÖU-O/J Cable is typically used in cable winding reels for harbour cranes, container cranes, conveyors, handling machines for vertical reeling applications.
INQUIRY

0.6/1kV (N)SHTÖU-O/J Cable is typically used in cable winding reels for harbour cranes, container cranes, conveyors, handling machines for vertical reeling applications.

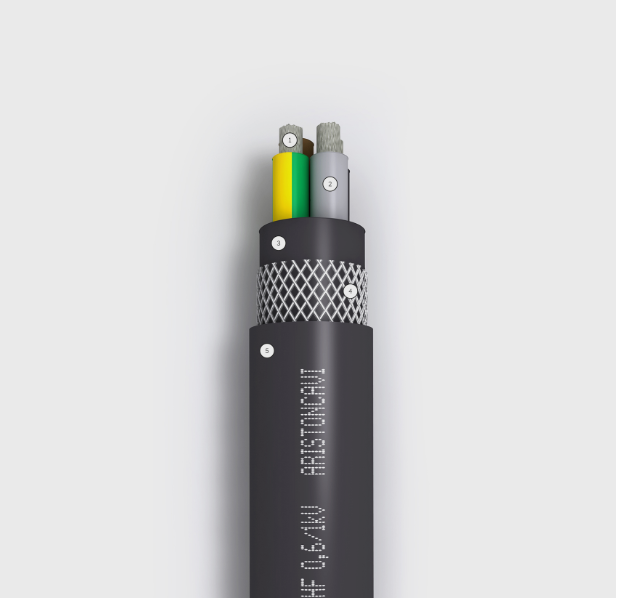

(N)SHTÖU - O/J
Based on DIN VDE 0250 Part 814

PHASE CONDUCTORS
MATERIAL: tinned copper
CONSTRUCTION: class 5 VDE 0295 (IEC 60228)
INSULATION
MATERIAL: 3GI3 rubber compound, according to VDE 0207 Part 20

CORES IDENTIFICATION
According to DIN VDE 0293 Part 308 (HD 308 S2)

LAYING-UP
≤ 8 times the laying-up cores diamete
INNER SHEATH
MATERIAL: halogen free polyurethane
ANTITWISTING ELEMENT
MATERIAL: polyester braid between inner and outer sheath
OUTER SHEATH
MATERIAL: halogen free polyurethane

COLOUR: black

0.6/1kV (N)SHTÖU-O/J Cable designed for power mobile connections, under very high mechanical stresses (tensile strength and torsion), for heavy duty conditions, abrasion and crushing. To understand the NSGAFÖU Cable click here.
