Product description: NSHTÖU-J Cable  at high mechanical stresses for the connection of heavy-duty underground mining, industrial and construction equipment, in dry and damp areas, and outdoors.NSHTÖU cable is largely fla
INQUIRY

NSHTÖU-J Cable at high mechanical stresses for the connection of heavy-duty underground mining, industrial and construction equipment, in dry and damp areas, and outdoors.NSHTÖU cable is largely flame-resistant and oil-proof.

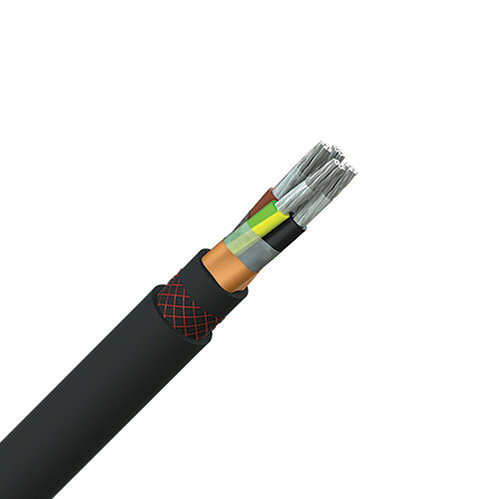

NSHTÖU-J Cable structure

PHASE CONDUCTORS
MATERIAL: tinned copper
CONSTRUCTION: class 5 VDE 0295 (IEC 60228)
INSULATION
MATERIAL: 3GI3 quality rubber compound, according to VDE 0207 Part 20
NOMINAL THICKNESS: according to VDE 0250 Part 812
CORES IDENTIFICATION
According to VDE 0293 Part 308 (HD 308)
INNER SHEATH
MATERIAL: rubber compound GM1b quality,according to VDE 0207 Part 21
OUTER SHEATH
MATERIAL: rubber compound 5GM5 quality,according to VDE 0207 Part 21
COLOUR: yellow
NSHTÖU-J Cable characteristic
Rated voltage Uo/U:0.6/1kV.
Test Voltage: 3kV.
Max. temperature at conductor: 90°C.
Max. operating temperature, fixed: -40°~ +80°C.
Temp. moved/during installation: -20°~ +80°C.
UV resistant: yes.
Flame retardant: yes.
Oil, lye and grease resistant: yes.
