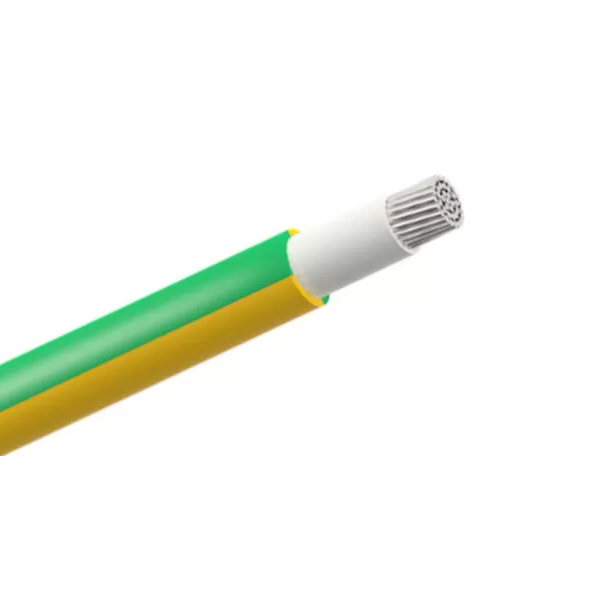

SW4 Marine Cable

6571TQ Type SW4 Cable

6571TQ Type SW4 Cable
SW4 marine cable
SW4 cable
Product description: 6571TQ Type SW4 Cable for fixed installations in all areas including accommodation and open deck in ships and offshore units.recommend BFOU Cable
INQUIRY

6571TQ Type SW4 Cable for fixed installations in all areas including accommodation and open deck in ships and offshore units.recommend BFOU Cable

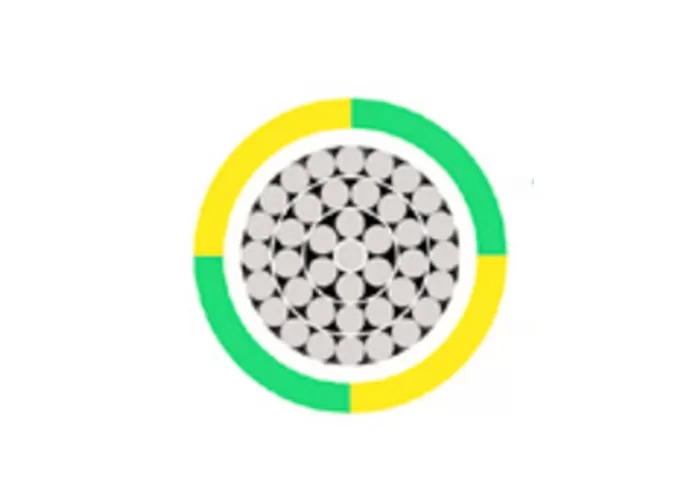

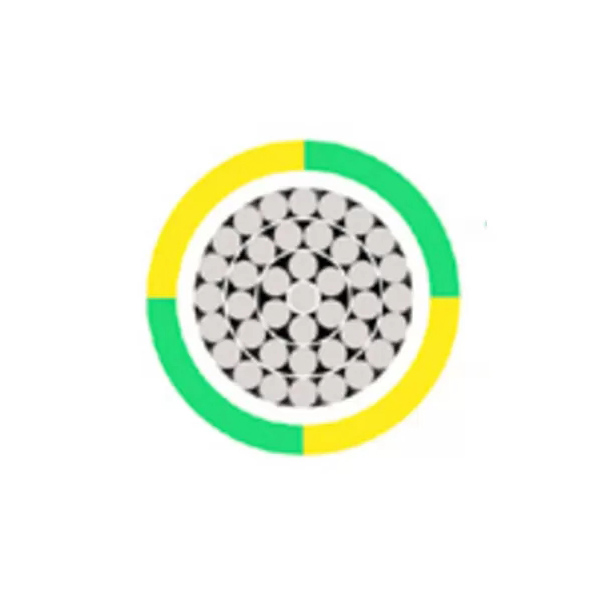

6571TQ Type SW4 Cable CONSTRUCTION:
Conductor
Class 2 tinned copper conductor according to
BS EN 60228 (previously BS 6360)
Insulation
Halogen-free elastomer compound EPR Type GP4 according to
BS 7655
Sheath
HOFR (Heat and Oil Resistant and Flame Retardant), halogenfree elastomer compound Type SW4 according to BS 7655
Sheath Colour

Green/Yellow

6571TQ Type SW4 Cable DIMENSIONS

CORE NO.	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1	1 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500	0.8 0.8 0.8 1 1 1 1 1.2 1.2 1.4 1.4 1.6 1.6 1.8 2 2.2 2.4 2.6 2.8	1 1 1 1 1 1 1.1 1.2 1.2 1.3 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 2.2	4.8 5.1 5.6 6.5 7.1 8.1 9.5 11.4 12.6 14.3 16 18.6 20.3 22.4 24.9 28 30.9 35.3 39.3	34 40 54 78 101 144 216 328 429 551 753 1049 1274 1568 1949 2530 3134 4258 5337
