  • Product description: SW4 657 TQ marine cable flexible armour and SW4 grade low smoke halogen free sheath allows easy installation twinned with a high level of safety making them ideal for use on rigs and ships.Designed to
  • INQUIRY
SW4 657 TQ marine cable flexible armour and SW4 grade low smoke halogen free sheath allows easy installation twinned with a high level of safety making them ideal for use on rigs and ships.Designed to BS 6883, these cables have a galvanised steel wire braid armour to provide mechanical protection. They are available in pair or triple configurations with individual or collective screening to prevent electrical interference.

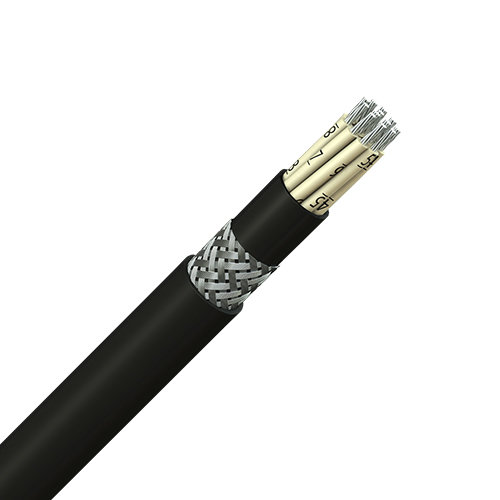

SW4 657 TQ marine cable structure

marine cable

Conductor:Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228
Insulation:Mica tape + HF-EPR GP4 according to BS 7655 1.2.
Inner Sheath:Halogen free thermosetting compound SB1 according to BS 7917.
Armour:Galvanized steel wire braid or tinned bronze wire braid (single core). Copper wire braid can be offered upon request.
Outer Sheath:Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.
SW4 657 TQ marine cable Non armoured cable, suitable for power, control and lighting for fixed installations in all areas in ships and offshore units including accommodation and open decked areas exposed to the elements. SW4 cable should be installed where there is no risk of mechanical damage.
