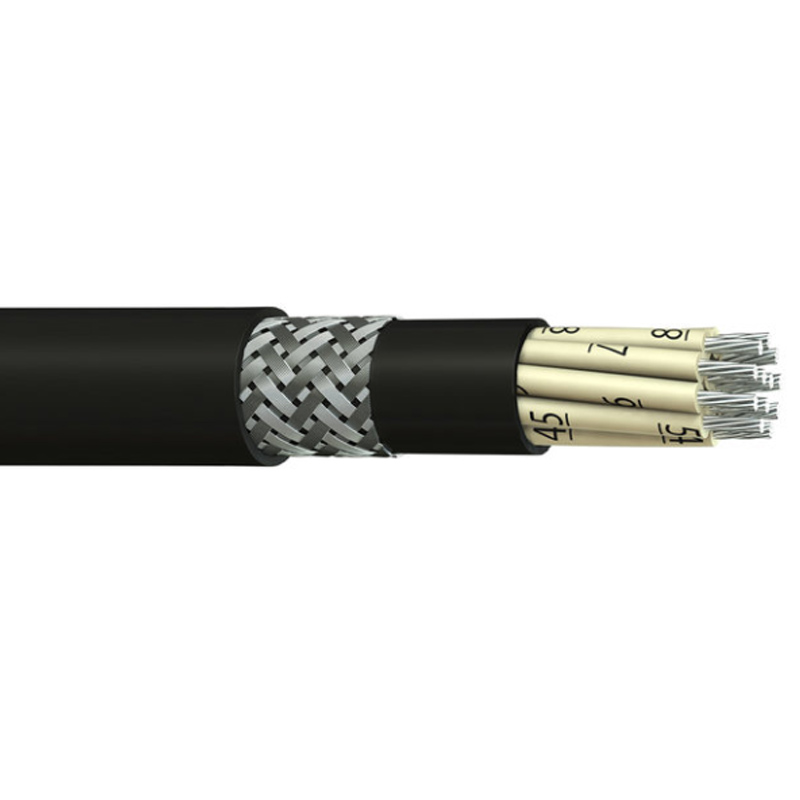

Product description: SW4 cable is ordinary duty cables with an enhanced oil resistance and low smoke and gases emissions when subject to fire. Type SW2 cables for heavy duty requirements are also available.
SW4 cable is ordinary duty cables with an enhanced oil resistance and low smoke and gases emissions when subject to fire. Type SW2 cables for heavy duty requirements are also available. SW4 cable performance Voltage Rating:0.6/1kV Conductor Stranding:IEC 60228 Class 2, tinned copper Temperature Rating:-30°C to +90°C Bending Radius Static: <10mm²4 x cable OD >10mm² to 25mm² 4 x cable OD >25mm²6 x cable OD Oxygen Index of Sheath:>31% Flame Retardant:IEC 60332-1-2, IEC 60332-3-22 Cat A Smoke Emission:IEC 61034-1 & 2, BS 7622 Halogen Emission:IEC 60754-1 & 2, BS 6425-1 Manufactured To:BS 6883 SW4 cable structure Conductor: Tinned annealed stranded copper - class 2 Core Identification: White cores with black numbers Insulation: EPR (Ethylene Propylene Rubber) Sheath/Jacket: Low Smoke Zero Halogen (ZHAL), type: SW4
Colour: Black
SW4 marine cable for power, lighting and control applications, manufactured in accordance with British Standard BS6883. Anhui TianKang(Group)Shares Co.,Ltd range includes armoured (658TQ) and unarmoured (657TQ) cables designed for fixed wiring installations across all areas onboard ships and offshore units, including accommodation and open deck. It also includes the unarmoured 6571TQ, an unarmoured cable designed to prevent the risk of electric shock in the event of fault or surge.
