Lift Cable

FLGÖU-J cable

FLGÖU-J cable
FLGOU control lift cable
Product description: FLGÖU-J cable|FLGOU control lift cable is a neoprene sheath cable suitable for use as a power or control cable.
INQUIRY

FLGÖU-J cable|FLGOU control lift cable is a neoprene sheath cable suitable for use as a power or control cable. The cable features a central textile support element making it suitable for use on elevators and conveyors. Used as energy and control cable for elevators, conveyors, machine tools and pendant control panels when exposed to mean mechanical strain.The (N)FLGöu cable is not suitable for use on rollers and drums when exposed to tensile load.Used in dry, damp and wet environments and for outdoor installation,EPR rubber cable.

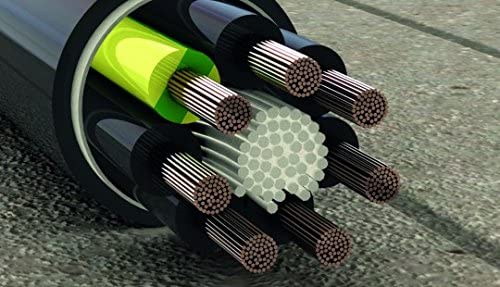

FLGÖU-J cable|FLGOU control lift cable Construction
Conductor : Fine stranded plain copper according to VDE 0295 Class 6
Insulation: Rubber compound
Core colour : Up to 5 cores coloured according to VDE 0293 –7 cores and
above black with white numbers with green/yellow earth
Core Arrangement : Cores stranded in layers
Outer sheath : Polychloroprene (Neoprene)
Sheath colour : Black RAL 9005
Imprint : FLGOU 300/500V

FLGÖU-J cable|FLGOU control lift cable Parameters

Cross-section(mm²)	Cu content(kg/km)	Outer diameter approx.(mm)	Weight approx.(kg/km)
3X1.0	29.0	9.5	116
7X1.0	72.0	14.0	225
24X1.0	230.0	22.5	650
36X1.0	346.0	27.0	980
3X1.5	43.0	9.7	141
4X1.5	58.0	11.0	171
18X1.5	259.0	21.0	630
24X1.5	346.0	23.5	910
42X1.5	677.0	32.0	1600
4X2.5	96.0	12.0	250
5X2.5	120.0	12.7	300
24X1.5	346.0	23.5	910
37X2.5	925.0	38.5	2250
4X6.0	244.0	17.5	524
5X6.0	295.0	19.0	569
4X10	393.0	21.8	730
5X10	491.0	24.6	920
4X16	629.0	25.4	1028
5X16	787.0	28.0	1250

FLGÖU-J cable|FLGOU control lift cable Technical
1.Rated voltage:300/500V
2.Test voltage:3000V
3.Insulation resistance at +20°C:≥10MOhm x km
4.Bending radius:12.5 x cable diameter
5.Temperature range:flexible: -25°C~+60°C stationary:-40°C~+80°C
FLGÖU-J cable|FLGOU control lift cable is a power and control cable for use in lift and conveyor application, hoisting devices and many other similar installation. It is suitable for dry, humid and wet rooms and also for outdoor applications,NSHTÖU Cable.FLGÖU-J cable,FLGOU control lift cable
